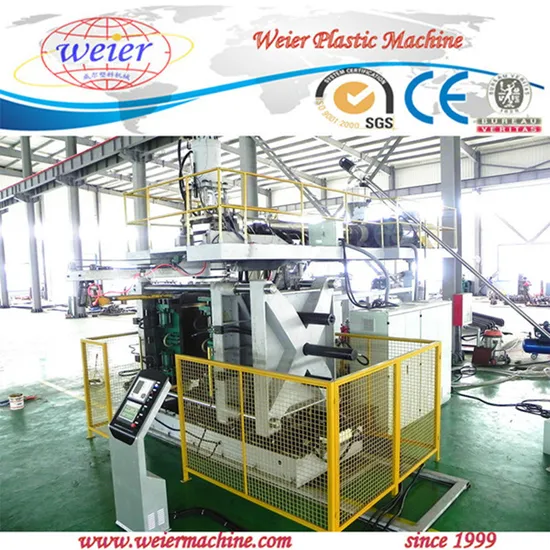

220L Blue Vertical Water Tandk Blow Molding Machine

Product Description

220LDouble Ring Drum Blow Moulding Machine
220L water tank machine can produce 220L double L-ring barrel. It can be used to put with chemicals.

1000L double layers water tabk blow molding machine can produce 150-1000L water tank.
1. Appliction: plastic blow moulding machines For container and tank from 50 to 5000 liter, 1-4 layers, also can be used to produce pallet, waste bin, road barrier, septictank,and so on.
2. Manpower: 2 new workers are enough for the whole production line, even both are female, and two weeks training are free of charge.
3. Material: HDPE, HMWHDPE.
4. Certificate: CE, ISO9001:2008.
5. Main Markets: Asia, South America, European.
PARAMETER

System	Item	220L Type Barrel 2 layers
Extruder	Screw diameter(mm)	120
	L/D	30/1
	Driving motor power(kw)	75/75
	Exrusion capacity(kw)	44
Moulds die head	Materials storage volume(L)	22
	Parison control	100dot MOOG wall thickness controller
	Die lip size range(mm)	200-250
	Heating power(kw)	40
Moulding clamping system	Mould size (mm)	1600*1500
	Clamping force(KN)	800
Electrical control cabinet	Temperature controlling	SIEMENS
	PLC	SIEMENS
	Touching screen	SIEMENS
Hydraulic system	Main oil pump motor(kw)	37
	Servo motor(kw)	7.5
Basic parameter	Outer sizeL*W*H(M)	7*4*5
	Total power installed(kw)	239
	Average power consumption(kw)	143
	Weight (T)	24

Configuration:

PARISION CONTROL THINCKNESS CONTROL	MOOG	JAPAN
PLC	SEIMENS	GERMANY
TEMPERATURE CONTROL MODULE	SEIMENS	GERMANY
SERVO VALVE & SERVO TRANSDUCER	MIRAN	ITALY
INVERTER	SEIMENS	GERMANY
HYDRAULIC OIL SEAL	DZ	TAIWAN
INTERMEDIATE RELAY	OMRON	JAPAN
PNEUMATIC VALVE	AIRTECH	TAIWAN
HYDRAULIC PUMP & VALVE	YUKEN	JAPAN
PNEUMATIC SWITCH & CONTACTOR	SEIMENS	GERMANY
HYDRAULIC MOTOR & SCREW MOTOR	SEIMENS	GERMANY
REDUCER	GUOMAO	CHINA

DELIVERY TIME
4 months after the down payment;

TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;

INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week,if the Buyer still needs the training,$100 should be paid for the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.And the Buyer should also pay for the air ticket for the engineer.

GUARANTEE
The guarantee time is one year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
