Factory Direct CNC Hr/Hrpo/Ss/Q355 Metal Shearing Machine Slitter Ctl Cut to Length Line

Product Description

Cut to length line ZCL series
Cut to length line is mainly used for jobs like uncoiling, leveling, measuring the length, cutting and stacking of kinds of materials, such as cold rolled or hot rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Feeding device	1 set
4	Pre- leveler	2 set
5	Looper	1 set
6	Side guide	2 sets
7	Precision Leveler	1 set
8	Shear Machine	1 set
9	Conveyor	1 set
10	Stacker	1 set

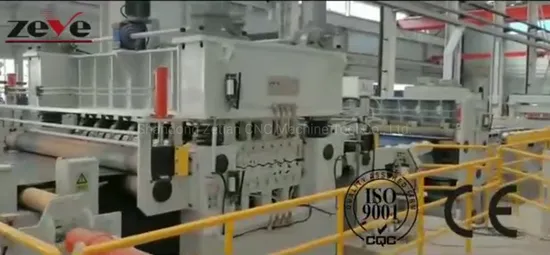

Layout of Cut to Length Line
Main Technical Parameters

Model	ZCL-6	ZCL-8	ZCL-12	ZCL-16	ZCL-20/25
Material thickness	1.5-6.0mm	2-8 mm	3-12 mm	4-16 mm	6-20/25 mm
Material width	800-2000 mm	800-2000 mm	800-2000 mm	800-2200 mm	800-2500 mm
Finished length	1000-6000 mm	1000-8000 mm	100-12000 mm	2000-14000 mm	2000-14000 mm
Length accuracy	±1.0 mm	±1.0 mm	±1.0 mm	±1.0 mm	±1.0 mm
Diagonal accuracy	±1.0 mm	±1.0 mm	±1.5 mm	±1.5 mm	±1.5 mm
Leveling accuracy	<1 mm/m2	<1 mm/m2	<1.5 mm/m2	<1.5 mm/m2	<1.5 mm/m2
Line speed	50 m/min	40 m/min	40 m/min	40 m/min	30 m/min
Coil weight	20,30 t	20,30 t	20,35 t	20,35 t	20,35 t

Our advantages
1.Reasonable structure, convenient to adjust, high precision and high efficiency.
2.Japan MAZAK, Spain CORREA CNC etc.the world most advanced high precision processing equipment to ensure to produce out the high precision parts.
3. Every part has been done it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance
4. Strictly inspection during production and assembly, which in order to ensure every parts to be used is qualified.

Part of our customers
Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies.
Company introduction
Shandong Zetian CNC Machine Tool Co., Ltd (short for Zetian )and Jinan ZeYe Machine Tool Co., Ltd (short for ZeYe) are brother enterprises. Zetian is for import and export business, ZeYe is one professional manufactory, was founded in 1997 in Jinan city, Shandong Province, China. ZeYe is mainly engaged in developing ,manufacturing and sales of Cut to Length Line, Slitting Line, Rotary Shear, Moving Shear, Slitting and Cut to Length Combined Line, Leveling Machine. Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel,
aluminum, copper and other metals.
We have one professional technical team and after sales service team, we are ready to serve you at all the time.
Welcome to visit our factory.
FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are a professional manufacturer specialized in automatic shearing line
for 23 years, we have a strong design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, shearing length, processing precision etc.
Q: What's the shipping cost from China to our country ?
A: We can ship equipment to your port by sea, shipping cost depends on shipping agend and season, FOB, C&F as well as CIF are all acceptable.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months when the equipment run normally .
We offer online service 24 hours per day, Skype, Wechat, Email etc, you could contact us at your available time.
