Permanent-Magnet Synchronous Gearless Machine for Elevators From Chinese Supplier

Product Description

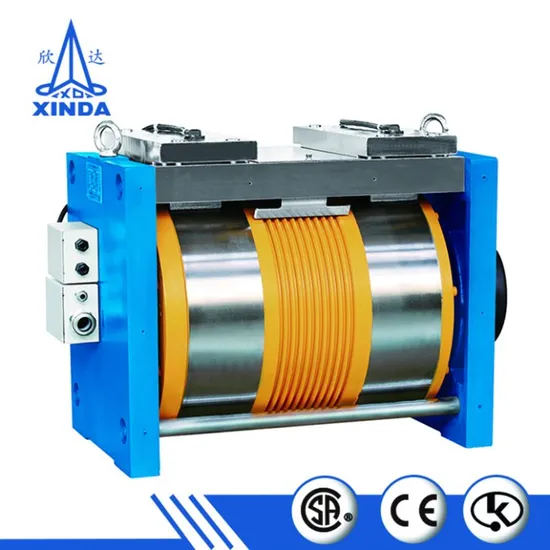

Permanent-Magnet Synchronous Gearless Machine for Elevators from Chinese Supplier
OUR ADVANTAGES
1.We have taken the lead in developing permanent magnet synchronous gearless traction
machine successfully in china,achieving six items of "the whole nation first".
2.We have 20 years' export experience and are ready to serve your market.
3.More than thirty years in elevator spare parts.
4.A leader in Mainland China.
5.We can provide high quality technical support.
6.We guarantee first-rate services.

PRODUCT DESCRIPCTION

Product Name	Permanent-Magnet Synchronous Gearless Machine for Elevators (WYJ140)
Traction ratio	2:1
Rated capacity	400, 450, 630kg
Rated elevator speed	0.4, 1, 1.6m/s
Max. shaft load	2000 KGS
Applicable converter	3 phase 400V
Brake voltage	DC200V for brake opening, and DC100V for brake holding
Number of motor poles	10 poles
Certificate	ISO9001 / CCC / CE
Features	Low-energy, Low noises, Non-pollution, Less maintenance
Payments	T/T, L/C

Don't hesitate to contact us if you have any questions.
PRODUCTS SHOW
Overall dimensions and mounting dimensions
COMPANY OVERVIEW
With multi-industry and self-supporting import and export rights, China Ningbo Xinda Group Co., Ltd. is
one of the largest manufacturers & exporters for elevator key mechanical components in the world. we have
20 years' export experience and are ready to serve your market.Our global annual sales amount reached
US$200 million in 2009. We provide worldwide customers with a full line of reliable products:
1. Elevator key components:such as Geared Traction Machine, Gearless Traction Machine, lift motors,
Elevator Car, Door Operator, Landing Door, Overspeed Governor, Safety Gear, etc.
2. Complete elevators, escalators, moving walks:such as Passenger Elevators, Freight Elevators, Commercial
elevators, Residential Elevator, MRL elevators, Service Elevator, Bed Elevator, Observation Elevator, Indoor or
Outdoor Escalators, passenger conveyors etc.
3. Screw air compressors:such as Twin-screw compressor, stationery screw compressors, air-cooled Screw
Compressor, water cooled Screw Compressor, oil-flooded compressor, variable frequency screw compressor,
portable screw compressor etc.
4. Rotogravure Printing machines:such as combined type rotogravure press, dry lamination machine,
rotogravure printing & coating machine, rotogravure printing & slitting machine etc.
