Winch 5-10 Ton for Tow Truck Roadside Assistance Durable Quality

Product Description

Introducing our robust lineup of hydraulic winches, spanning capabilities from 1 to 6 tons, uniquely tailored for off-road vehicles and ATVs. Meticulously engineered to conquer the most challenging terrains, these winches stand as your ultimate ally for any adventurous endeavor.

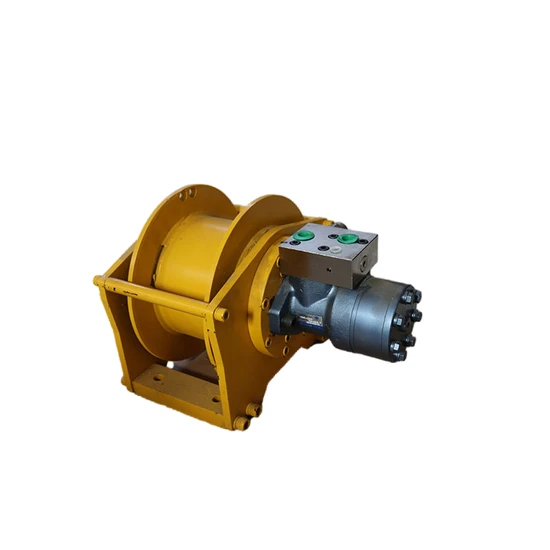

Unveiling the JINJA brand's formidable 3-ton (6600 lbs) hydraulic winch, a testament to precision engineering excellence. This masterpiece features a meticulously crafted amalgamation of components: an adaptable hydraulic motor (providing both low-speed and high-speed functionalities), a dependable brake system, a robust gearbox, a resilient drum, a supportive shaft, a durable frame, and an optional rope device. Each component synergizes flawlessly to deliver unmatched performance and resilience.
Our versatile winches are expertly designed to excel across a broad spectrum of lifting applications. Whether it be railway locomotives, truck cranes, ships, oil field drilling, coal mines, ports, or small-scale engineering machinery, these winches are engineered to boost efficiency and reliability across diverse industrial landscapes.
Product Parameters

Jinjia Brand Hydraulic Winches Technical Specifications
Product items		1T~3T	5T	6T	8T	10T	12T	16T~25T
Torque (max)	Tnom(N.M)	1912	2266	2421	3200	3560	5318	9000~12000
Reduction ratio	i	6	5	7	22.5	25	30	36~42
Wire rope winding layer		4	4	4	4	4	4	4
Wire rope specification	mm	φ11	φ11	φ11	φ11	φ11	φ11	φ11
Output revolution (rated)	Nnom(r/min)	44.5	66	49	53	47	63	60
Brake opening pressure	Mpa	0.8-1.5	0.8-1.5	0.8-1.5	0.8-1.5	0.8-1.5	0.8-1.5	1.5-2
Hydraulic motor series	Optional part	OMR seres	OMS seres	OMS seres	A2F55 seres	A2F55 seres	A2F55 seres	A2F80-A2F107
Lubricating oi specification		Grease	Grease	LCKD220	LCKD220	LCKD220	LCKD220	LCKD220
Amount added	Q(L)	1	1.5	1.5	2	2	2.5	3
Weight	Kg	40~45	70	90	125	125	125	150

Application scenario
JinJia's exceptional hydraulic winches exemplify their versatility and dependability across numerous sectors. They play pivotal roles in conveyor tensioning devices and mechanical engineering for heavy machinery, including truck cranes, crawler cranes, and aerial vehicles. Their influence extends to shipping ports, with applications in port cranes, floating cranes, dredgers, cranes, and davits. Moreover, they are indispensable in large-scale industries, including oil rigs, offshore oil drilling platforms, piling machinery, rotary drilling rigs, and hydrostatic pressure pile machines.
Company Profile
Jining Jinjia Hydraulic Co., Ltd. stands as a distinguished Chinese manufacturer of cutting-edge hydraulic products, strategically situated in Jining New Material Industrial Park, Shandong Province. Occupying over 20 acres with a state-of-the-art office space of 9,000 square meters, our company boasts advanced CNC machining centers, forming grinders, and European-imported CNC technology. We specialize in producing and supplying high-quality orbit hydraulic motors and a vast array of hydraulic product categories.
We proudly present an extensive range of over 3000 variants of orbit motors, featuring diverse series of models and specifications. Our offerings boast rated displacements from 50cc/r to 1000cc/r, rotation speeds ranging from 1000 r/min to 100 r/min, and maximum torque spanning from 100Nm to 2000Nm. Crafted to perfection, our products serve as superb substitutes for Eaton (Char-Lynn) series products. Our comprehensive collection includes OMP/JH/BMP/BM1/HMP series, OMRJS/BMR/BM2/HMR series, OMS/2000/BM3/BM5/HMS series, OMT/6000/BM6/BMT/HMT series hydraulic orbital motors, alongside hydraulic pumps, cylinders, and valves.
Our premium hydraulic products have garnered a global reputation, reaching esteemed markets in the United States, Germany, Brazil, Canada, India, Turkey, Finland, Malaysia, and beyond. With extensive expertise in product design, manufacturing processes, and rigorous quality assurance, we are dedicated to advancing product innovations. Our unwavering ambition is to elevate our performance, aspiring to emerge as a world-class leader in hydraulic manufacturing. Our relentless pursuit is to ensure outstanding products and unparalleled service for our esteemed customers.
FAQ
Q:Are you trading companyormanutactureiA: We are factory.
Q: My requirements are special, can the product be customized?A: YES! We are manufacturer, and we have our own engineer group. They can work outcustomized design according to your requirement. The most important ting is that you
should provide all the needed information.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods arenot in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample ,but it need to be afford by customer
Q: What information should l provide to you before you could recommend asuitable winch and quote for me?
A:1 Intended application of the winch (including working condition)2 line pull (t)
3 line speed (m/min)
4 drum capacity/rope length (m)
5 rope diameter ( if have)
6 hydraulic system pressure and pump flow ( if have)
7 other special requirements
