Nc Copper Iron Aluminum Stainless Steel etc Metal Tube Hydraulic Automatic Pipe Shrinking, Expanding, Reducing, Flaring, Crimping, Beading, End Forming Machine
| US$6,999.00-15,999.00 | 1 set/sets (MOQ) |
Basic Info.
Model NO.
TM-60NC
Forging Forming Method
Mold Forging
Power Source
Hydraulic Pressure
Feature
Automation
Certification
ISO9001, CE
Warranty
24 Months
Customized
Customized
Advantage
Easy to Maintenance
Condition
New
Name
Pipe End Forming Machine
Technical
Cold Forming
Company Certificate
ISO 9001-2000
Product Certificate
CE
Operate Way
Human Interface
Suit End Forming
Shrinking/Expanding/Others
Optional Function
Multi Stations
Water Proof
Ipx-8
Voltage
Can Be Customized
Additional Controlling
PLC Controlling
Business Type
Manufacturer
Color
Standard or Customized
Cooling
by Fan or Water
Forming Driving
Hydraulic
Optional Station Change
Hydraulic/Servo Motor
Transport Package
Wooden Case Packing
Specification
60x2mm
Trademark
SZ-SLS
Origin
China
HS Code
846221
Production Capacity
500 Pieces/Year
Packaging & Delivery
Package Size
2000.00cm * 800.00cm * 1200.00cm
Package Gross Weight
1000.000kg
Product Description
Product DescriptionNC Copper Iron Aluminum Stainless Steel Etc Metal Tube Hydraulic Automatic Pipe Shrinking, Expanding, Reducing, Flaring, Crimping, Beading, End Forming Machine

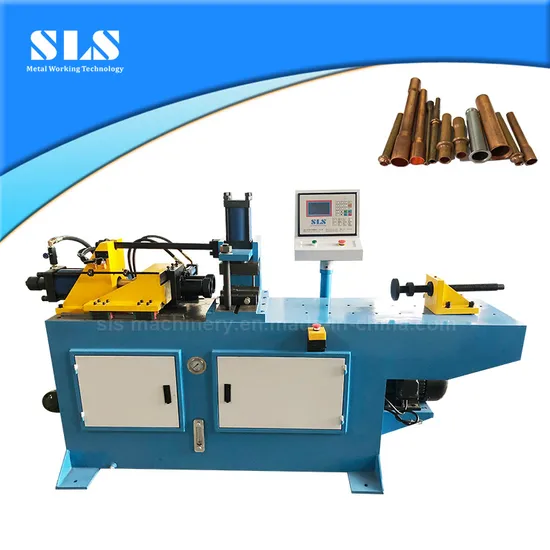

Brief Introduction on Metal Pipe End Forming Machine
SLS NC Copper Iron Aluminum Stainless Steel Etc Metal Tube Hydraulic Automatic Pipe Shrinking, Expanding, Reducing, Flaring,
Crimping, Beading, End Forming Machine is a kind of high efficiency,automatic machine. It can be do different types of end forming as
reduction, expansion, beads, flare and thickening.Each of these categories has special requirements and is used in a variety
of applications. It is controlled by hydraulic and electricity at the same time.It combines easy-to-use operation with high end
forming accuracy and cost effectiveness.
Features on Metal Pipe End Forming Machine Human Interface offers easy access to auto and manual operating modes.
All the parts are made under very strict quality control, so the quality of machine is in high level and the specification is standardized.
Equipped with emergency stop device. Both manual and automatic operations are available.
Tube clamping and end forming driven by hydraulic.
Available pipe material: steel, stainless, aluminum, titanium and brass...
The design of the tooling help customer easy to change.
Water cooling system ensures the equipment long-time work stably under the high temperature.
CE&ISO 9001:2000.
Main Technical Parameters
| Model | 40NC | 60NC | 80NC | 100NC | 115NC | 165NC | 220NC |
| Capacity | 40x2mm | 60x2.5mm | 80x3mm | 100x3.5mm | 115x4mm | 165x5mm | 220x8mm |
| Max. Forming Stroke | 100mm | 100mm | 100mm | 150mm | 150mm | 150mm | 150mm |
| Forming Time | 3-4s | 4-5s | 7-8s | 9-10s | 12-14s | 15-18s | 20-25s |
| Power | 4Kw | 5.5Kw | 7.5Kw | 11Kw | 15Kw | 22Kw | 33Kw |
| Woking Pressure | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa |
FAQ:
| 1.Q: Are you a manufacturer or trading company? | A: Yes, we are a manufacturer.We are focusing on metal Pipe/Tube Processing. machines production. |
| 2.Q:Where is the nearest airport to your company? | A: Wuxi Airport or Shanghai Airport. |
| 3.Q: How to choose the pipe/tube forming machines? | A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - End Forming Shape - End Forming Length - Other requirements |
| 4. Q: Do you have CE certificate? | A: We have CE certificate. |
| 5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours. |
