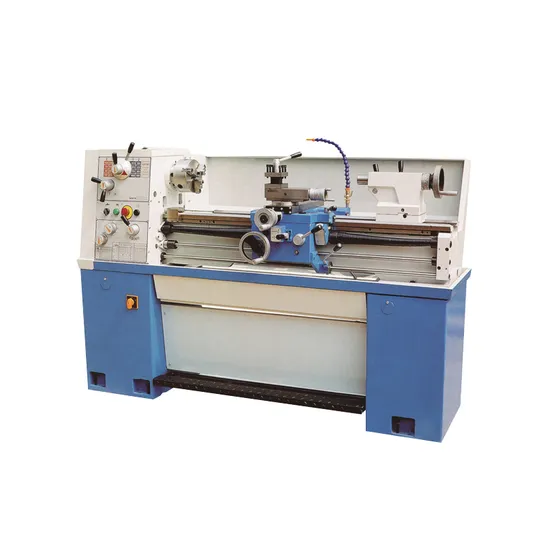

Manual Universal Lathe Machine C0632D Manual Lathe Machine for Steel
Basic Info.
Model NO.
C0632D
Type
Horizontal Lathe
Processing Accessory
Metal or Wood
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 930*760*1530mm
Trademark
DRC
Origin
China
Production Capacity
500
Product Description
Manual universal lathe machine C0632D manual lathe machine for steel| MODELS | C0632D | C0636D |
| Swing over bed | 330mm(13 ") | 360mm(14 ") |
| Swing over cross slide | 198mm(7-25/32 ") | 224mm(8-13/16 " | |
| Swing in gap diameter | 476mm(18-3/4 ") | 502mm(19-3/4 ") |
| length in gap | 210mm(8-1/4 ") | |
| Center height | 166mm(6-1/2 ") | 179mm(7 ") |
| Admits between | 1000mm(40 " ) | |
| Spindle bore | 38mm(1-1/2 " ) or40mm(1-9/16 ") | |
| Spindle nose | D1-4 orD1-5 | |
| Taper in nose | No5 morse | |
| Speeds number | 8 | |
| Speeds range | 70-2000r/min | |
| Cross slide travel | 170mm(6-11/16 ") | |
| Compound rest travel | 95mm(3-9/16 ") | |
| Lead screw thread | 8T.P.I. or 3mm pitch | |
| Feed rod diameter | 19mm(3/4 ") | |
| Cutting tool max section | 16mmxl6mm(5/8 " x5/8 ") | |
| Threads imperial pitches | 42 Nos. 4-112T.P.I | |
| Threads metric pitches | 44 Nos. 0.1-7mm | |
| Threads diametral pitches | 25 Nos. 16-112DP | |
| Threads module pitches | 34 Nos. 0.1-1.75MP | |
| Longitudinal feeds imperial | 24 Nos. 0.00168-0.1175 " /rev | |
| Longitudinal feeds metric | 24 Nos. 0.046-3.249 mm/rev | |
| Cross feeds imperial | 32 Nos. 0.00046-0.03231 11 /rev | |
| Cross feeds metric | 24 Nos. 0.01-0.703 mm/rev | |
| Quill diameter | 32mm(1-1/4 " ) or 42mm(1-21/32 ") | |
| Quill travel | 100mm(3-15/16 11) | |
| Quill taper | No3 morse | |
| Main motor power | 1.5kW(2HP) | |
| Coolant pump power | 40W (1/16HP) | |
| Packing size | 93cm x 76cm x 153cm | |
| NG/GW | 540/645 kg | |
