Hot Sale Double Column Portalo C CNC/ Gantry Milling Machine Xkw2328*60 with Table Size 2300*6000

Product Description

1. Machine features
I.the machine adopts high rigid gantry frame structure,and the important parts are resin sand castings,and through two artificial aging treatment,has enough hyro-static rigidity and good precision retention.
II.All three axes of the machine adopt double nut pre-tightening ballscrew,and pre-strethching,driving rigidity is strong,the precision is stable and reliable.
III.The XY axes adopts heavy-duty linear guideway(ballscrew)structure,the Z axis adopts rectangular box way structure,and the Z axis is equipped with the diazo liquid balance cylinder,with small motion inertia and fast response speed.
IV. machine spindle adopts Taiwan high rigid spindle,long service life ,high reliability ,gear head driver or spindle motor direct drive structure.
2.Industry application
.
3.Machine parameter

Model		unit	XKW2322(F)*30	XKW2322(F)*40	XKW2328(F)*40	XKW2328(F)*60	XKW2332(F)*60	XKW2332(F)*80
processing capacity	gantry effective height	mm	2200		2800		3200
	X axis travel	mm	3000	4000	4200	6200	6200	8300
	Y axis travel	mm	2400		3000	3000	3400	3400
	Z axis travel	mm	1000				1000/1250
	spindle taper to table surface	mm	190-1190				250-1250/1500
table	table size(W*L)	mm	1800*3000	1800*4000	2300*4000	2300*6000	2500*6000	2500*8000
	table loading weight	T	6	10	14	18	24	28
	T-slot(W*distance)	mm	9-22*180		11-28*200		12-28*200
spindle	ram type/dimension	mm	T type guideway/square ram 400*400mm(F model)
	Max speed	rpm	6000/4000
	motor power	kw	22/26
	driving type		spindle direct connection/gear type head
	taper		BT50
ATC	capacity	T	24/32/40/60
	max. tool diameter	mm	Φ125/Φ230
	max tool length	mm	300
	Max tool weight	kg	18
others	total power capacity	KVA	60
	machine weight	T	35	40	45	55	65	70
	machine size	cm	900*600*550	1100*600*550	1100*650*550	1500*650*550	1500*700*620	1700*700*620
	CNC system		Siemens 828D/Fanuc 0I MF

4.List of key components
1.Spindle unit
2.XYZ axis ballscrew
3.XYZ bearing for ballscrew
4.spindle servo motor and driver
5.XYZ axis roller linear guideway
6.XY Z axis servo motor and driver
7.CNC system
5.Optional accessories
different type of milling head
ATC
square ram
gear head
6.Company honors

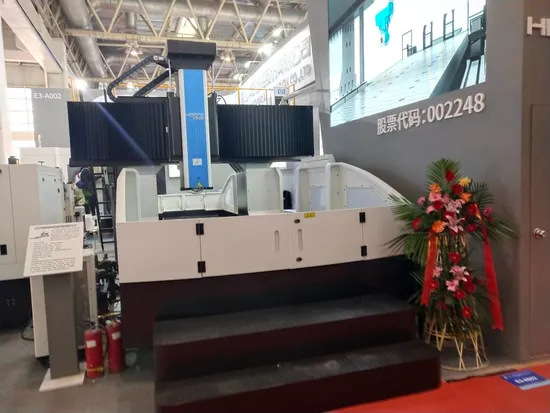

7.International exhibition
