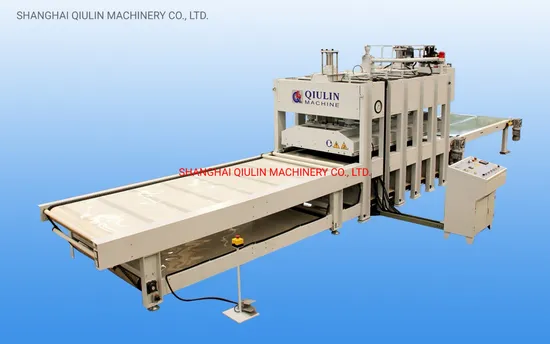

Woodworking Machine 200t Width Way Loading and Unloading Hot Press

Product Description

Hot press	BY624x8/20	BY624x14/20
Total pressure	2000kN	2000kN
Working layer	1	1
Specific pressure	0.5-6kgf/cm2	3.7kgf/cm2
Platen No. & Size	2-2500x1300x42mm	2-4200x1300x52mm
Opening	200mm	300mm
No. & diameter of main oil cylinder	8-Φ125mm	14-Φ85mm
No. & diameter of raising oil cylinder	2-Φ85mm	2-Φ85mm
Heating way	Electric heated with thermic oil	Electric heated with thermic oil, upper and down hot platen is controlled separately
Working temperature	indoor temperature ~120ºC	indoor temperature ~120ºC
Installation power	44.05kW	79.35kW
CLosing speed	50mm/s	50mm/s
Overall size(LxWxH)	8720x2370x2710mm	14090x2600x2380mm
Weight	About 8800kg	About 13000kg

Advantage:
1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.
3.Cylinder:It is worked through excellent CNC precision machine tool.
4.It uses high quality oil seals to make sure good sealing.
1.Delivery and Package:
-We will take care of your machinery packages well.
-Our workers will make sure your machine clean before package.
-We will add stretch film for the whole machine and spare parts for delicate protection.
-We will make export standard strong wooden box case package as your request for the knocked down parts of machines.
2.Guarantee:
The main machine is guarantee for 12 months and the electric elements is guaranteed for 6 months.Within guarantee under normal using and maintenance.If the machine has something problem because of our quality fault you will get spare part for free. After the guarantee, you will get the cost price for accessories.You will also get technical support and service all the time.
3.Technical Support:
-Technical support by Phone,Email,Wechat 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.
4.After sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you cost training until you can use machine freely.And if there is still any question, please contact us by Email, Phone, and we chat online service at any time.
