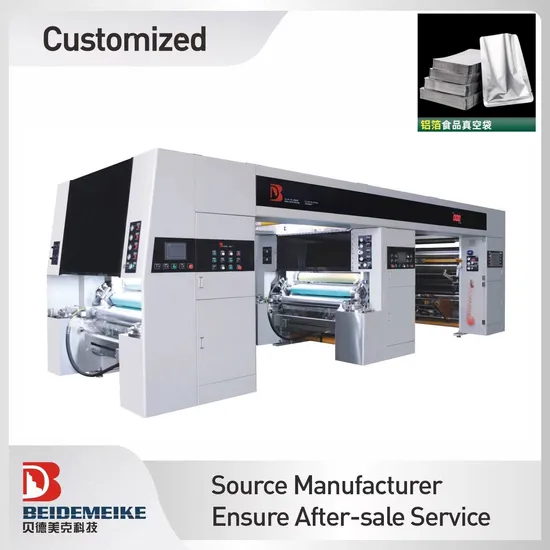

Customizable Kraft Paper Packaging Machinery Solventless Lamination Machine for Flexible Packaging

Product Description

Product Parameters

Model	BD-1050A3	BD-1250A3
Max. speed	400m/min	400m/min
Feeding width range	400-1050mm	500-1250mm
Max.unwind diameter	Ø800mm	Ø800mm
Max.rewind diameter	Ø800mm	Ø800mm
Paper core of unwinding	3''or6''	3''or6''
Paper core of rewinding	3''or6''	3''or6''
Edge tidiness for lamination	±2mm	±2mm
Total power	Approx80kw	Approx 90kw
Machine dimension	Approx5600(l)*2600(w)*2450(h)mm	Approx5600(l)*2800(w)*2450(h)mm
Machine weight	Approx.12800kg	Approx.13500kg

Main Features
Main advantages : Modular design, making machine installation and daily use easier. Applicable objects: large and medium-sized soft packaging enterprises and other types of composite Enterprises Applicable scope: various films, aluminium plating films, aluminium foil, paper, etc. Coil fixing method: cone apex or Inflatable Shaft Applications
Efficient solvent-free laminating machines are widely used in the manufacturing industry of soft packaging, such as ice bag , rice bag, kraft paper food bag ,vacuum bag, dog food bag.

Laminating substrates	Thickness of substrates		Coating substrates	Thickness of substrates
BOPP	12-80μm		BOPP	12-80μm
PETP	8-30μm		PETP	10-30μm
LDPE,LLDPE	20-200μm		LDPE,LLDPE	30-200μm
OPA	12-18μm		OPA	12-18μm
NYLON CAST	20-80μm		NYLON CAST	30-80μm
ALU(Foil)	6.3-40μm		PP CAST	60-150μm
PP CAST	20-150μm		PAPER	40-150gsm
COEX FILM	20-200μm
PAPER	40-150gsm

The above data is standard machine data and is for reference only. The material thickness can be changed according to the increase in power of the solvent-free lamination machine. workshop
lamination machine optional function: strip window, shaped window Composite black and white film Packaging & Shipping As long as customers have a demand, factory workers pack machines until late at night. The equipment on the car is a 400C multifunctional solvent-free lamination machine, which is preparing to be shipped to Vietnam. Exhibition show

Company Profile
Jiangxi Best Make Technology Machinery Co., Ltd is a production-oriented enterprise specializing in the development and production of soft packaging machinery. Our company has manufactured the only high-efficiency, high-performance, and multi-purpose solvent-less composite equipment in the world with built-in Rubber Mixer, focusing on various demands in Solvent-less Composite Field of Soft Packaging.So far, the market share of the product has grown at an annual growth rate of 50%, the market covers packaging agglomeration areas both at home and abroad. Through unremitting efforts and innovation, our company has developed a new type of solvent-less composite equipment with high-speed, multifunctional, Multi-layer. After initial market launch and customer feedback, it has been highly praised in the industry for its high cost-effectiveness and functionality. We warmly welcome domestic and foreign customers to visit our company for inspection and conduct technical exchange!
Collaborating with the source manufacturer is your best choice!
1.Providing more favorable pricing: As a manufacturer, there is no need for intermediaries or distributors, allowing for more favorable pricing for the customer.
2.Providing professional technical support: Manufacturers often have rich technical expertise and professional technical teams, providing customers with more professional technical support and solutions.
3.Providing customization services: Working directly with clients allows for product customization based on specific customer needs.
4. Faster product delivery: Manufacturers can typically produce and deliver products at a faster rate, reducing customer wait times.
5. Higher quality products: Manufacturers have strict quality control systems and well-developed production processes, resulting in higher quality products.
6. Establishing long-term strategic partnerships: Manufacturers focus on building long-term strategic partnerships with clients, responding to customer needs and feedback, and providing better services.
Production Environment
Coating unit: 1set
Five roller coating structure: Measuring roller, transfer steel roller, transfer rubber
roller, coated steel roller, coated rubber roller.
