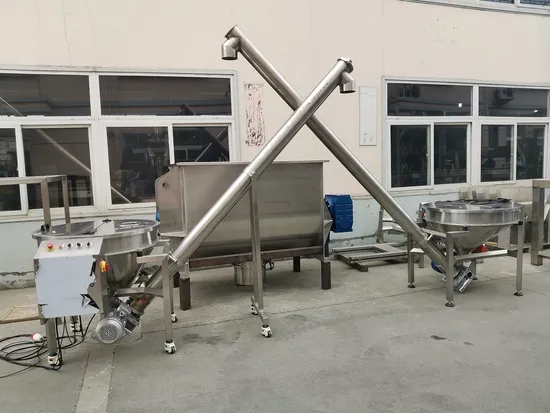

Dry Powder Mixes Ribbon Mixer

Product Description

Oregano powder Ribbon Mixer
Robbion Mixer, Robbon Blender, Mixer , Blending machine,Horizontal Robbon mixer
veterinary Bird Medicine cough powder Ribbon Blender
The ribbon blender mixes free-flowing raw materials within a U-shaped trough. A horizontal agitator consisting of precisely pitched inner and outer helical ribbons moves materials in a well-balanced axial and radial flow pattern. High-quality ribbon blenders feature tightly controlled clearances between the through surfaces and agitator tips. Good design and expert fabrication ensure fast repeatable mixing, easy clean-up, low maintenance, and long service life
Ribbon Blenders consist of U shape horizontal trough and specially fabricated ribbon agitator.Effective mixing load(40%-80%) High mixing speed and short uniform time. Mixing speed is around 5-15min
All stainless steel 304 material Full Mirror polished mixing tank inside, as well as ribbon and shaft
Safety switch, safety grid Discharge gate can be manual or pneumatically operated for direct filling in bags or dumping into storage bin
Standard Specifications:

Model	DH-JD-200	DH-JD-300	DH-JD-500	DH-JD-1000	DH-JD-1500	DH-JD-2000
Full Volume	200L	300L	500L	1000L	1500L	2000L
Turning Speed	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Mixing Vessel	3mm	3mm	3mm	4mm	5mm	6mm
Wall Plate	6mm	8mm	8mm	8mm	8mm	12mm
Main Shaft	57*6	76*6	76*8	89*8	102*8	114*10
Mixing Blade	6mm	6mm	6mm	8mm	10mm	12mm
Whole Length	1400	1530	1700	2000	2400	2600
Whole Width	900	1000	1200	1300	1400	1500
Total Height	1450	1550	1700	1960	2050	2200
Total Weight	250KGS	350KGS	500KGS	700KGS	1000KGS	1300KGS
Total Power	4KW	5.5KW	7.5KW	11KW	15KW	22KW
Air Consumption	4-6Bars
Power Supply	3 P AC208-415V 50/60HZ
