3cbm 4X2 Mini Transit Mixer with LHD or Rhd
| US$15,000.00-55,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
3m3 Mini Transit Mixer
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
3cbm
Certification
ISO9001: 2000, CE
Condition
New
Chassis
HOWO/Foton/Forland/Dongfeng
Mixer Volume
3/4/5/6/7cbm
Blades
Wear Resistant
Hydraulic Driving System
Eaton, Sauer or Bonfiglioli
Concrete Truck Mixer Control
Three-Point Control
Water Supply
400L Tank with Reinforced Pipe
Drum Process
Shot Blasting Pretreatment
Concrete Truck Mixer Welding
Spot Welding
Coating&Painting
Bus Baking Varnish Standard
Radiator
Emergency Switch Installed
Transport Package
Standard Packing for International Transport
Specification
ISO certified
Trademark
FOCUS
Origin
Zhengzhou, China
HS Code
8705400000
Production Capacity
60set Per Month
Product Description

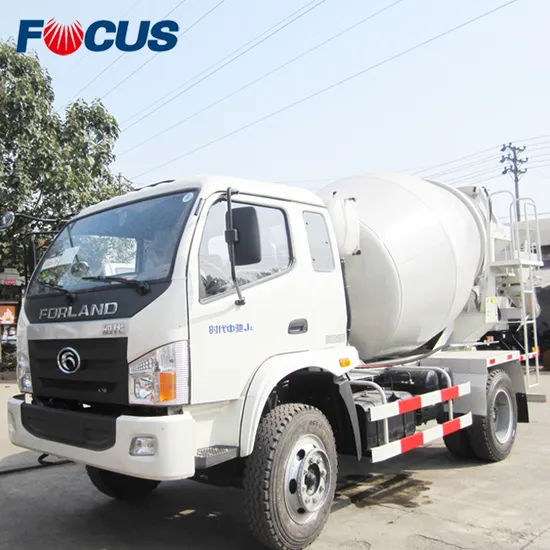

3cbm 4X2 Mini Transit Mixer with LHD or RhdDescription of FOCUS 3cbm 4x2 mini transit mixer with LHD and RHD:
1. HOWO, FOTON, Dongfeng and other chassis are available in FOCUS small concrete transit mixer you can also use our drum tank on your Chassis.
2. Volume of mixer tank: 3/4/5/6cbm, Drive: 4X2
3. International famous brand hydraulic drive fits are adopted in our Concrete mixer truck;
4. Integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
5. Multi-points control system enables the concrete mixer truck operation to be easier, safer and more comfortable;
Main features of FOCUS mini transit mixer?
1. Pump, motor and reducer in FOCUS concrete mixer truck are all original imported America static pressure driving system with big driving torque and high efficiency.
2. Imported hose and connector are separately from Germany EMB and Italy MANULI.
3. Hose buckling device is totally from Germany HYDAC.
4. Stirring vat auto-welding improves FOCUS concrete mixer truck production efficiency and makes welding quality finer.
5. Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.
| Model | 3m3 | 4m3 | 6m3 | |
| Tuck | Chassis | FOTON /HOWO | FOTON /HOWO | FOTON /HOWO |
| Length(mm) | 6765 | 7705 | 8715 | |
| Width(mm) | 2499 | 2500 | 2496 | |
| Height(mm) | 3420 | 3700 | 3850 | |
| Weight(kg) | 15990 | 18570 | 25000 | |
| Load weight(kg) | 7805 | 9860 | 11770 | |
| Max.speed(kg/h) | 80 | 80 | 90 | |
| Engine | Engine model | YC4D130-33 | YC6J190-33 | WD615.69 |
| Working device | Drum volume(m³) | 5.05 | 6.15 | 8.7 |
| Mixing volume(m³) | 3 | 4 | 6 | |
| Drum rotation(r/min) | 0-12 | 0-12 | 0-12 | |
| Discharge speed(m³/min) | ≥3 | ≥3 | ≥3 | |
| Surplus rate(%) | <0.5 | <0.5 | <0.5 | |
| Water tank vol.(L) | 400 | 400 | 400 | |
