2D/3D/4D Portable Color Doppler Ultrasound Scanner

Product Description

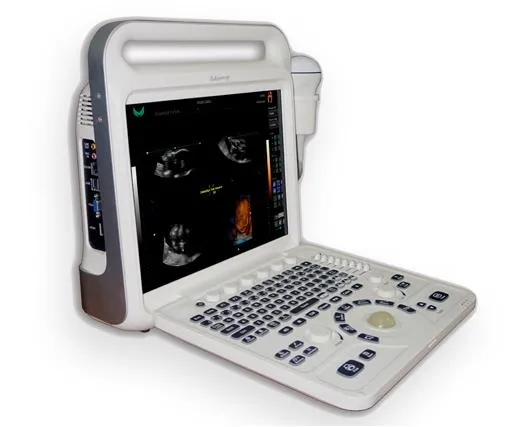

XF3600 (E60) Portable Ultrasound Color Doppler Diagnostic Scanner
Ultra Portable,Ultra flexible,Ultra affordable,Ultra durable,Ultra stable
XF3600 is an economical all-digital portable color doppler ultrasound diagnostic system launched by XianFeng company in 2016.It is compact in appearance and powerful in function.Built-in specialized measurement software package: department of gynaecology and obstetrics, distance,perimeter,area, heart rate, slope, time, the expected date of childbirth, gestational age and fetal weight and so on the many kinds of practical measurement analysis software, stream lined body design, The machine may at any time carry out for field diagnosis, six languages interface, double probe socket, apply to stomach, of department of gynaecology and obstetrics, the urology department, small organs and blood vessels and other parts of the inspection, especially suitable for large hospital bed and clinical examination of the basic medical institutions.Is a high cost - effective instrument
XF3600 (E60)color doppler ultrasound diagnostic machine
Operation Mode
*B/2B/4B/M/CFM/PDI/PW
*THI(Tissue Harmonic Imaging)
*Real-time 2D and Color Dual Mode.
*Real-time 2D and Doppler Double Synchronization.
*Real-time 2D ,Doppler and Color triple synchronization.
*Free hand 3D imaging(Optional)
*Four-dimensional Imaging (4D Optional)
*Automatic measurement and analysis vascular intima
*Extended imaging
*Compound Imaging
*Probe Interface:Two Active Probe Interface
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.
*Digital Printer / Video Printer / Laser Printer / Ink-Jet Printer
*Memory Function:Image Storage,Video Storage,Cineloop(≥300 Fram),Solid disk storage space≥120G.
*Puncture guide line:All kinds of probes can register puncture guide line function.
*The puncture guide line Angle adjustable and can be pre-defined.
*Language:Chinese, English, Russian, Spanish, Portuguese, French.
*Ultra-sonographyHigh-precision digital continuous beamformer: The fine ultrasonic beam control effectively removes the side-lobe noise, greatly improves the spatial resolution and contrast resolution, and exquisitely displays the entire organizational structure. Dynamic Frequency Fusion Imaging Technology: Adaptive control of the near field to the far field of the launch, receiving frequency, strong penetration and high-resolution images are the perfect combination.High-precision delay point-by-point dynamic receiver focus: Point-by-point high-precision delayed focusing on the entire image, showing real, delicate organizational information.Ultra-ideband imaging technology: According to different characteristics of the crowd, you can choose the best center requency.Adaptive image optimization processing technology: Based on the currently received tissue signals,digital parameter optimization is automatically performed to present a more perfect ultrasound image.THI tissue harmonic imaging technology: Ultrasonic emission at a lower frequency, and receive the echo signal of the second harmonic signal imaging, to ensure good penetration at the same time, enhance tissue imaging resolution, and to maximize the elimination of artifacts.Precise SRI adaptive speckle noise suppression An adaptive speckle noise suppression algorithm based on precise image recognition not only smoothes peckle noise but also preserves the features of tissue structure.
XF3600 (E60)color doppler ultrasound diagnostic machine with 4D optional
Measurement / Calculation
--General Measurement
--B mode: distance, area (track method, rectangle method, ellipse method), perimeter (track method, rectangle method, ellipse method), volume (double plane method, area length method, ellipsoid method), angle, ratio, stenosis rate.
--M Mode:Slope, ratio, stenosis rate, heart rate, time.
--D Mode:Doppler blood flow measurement, velocity, acceleration, pressure gradient, time, velocity integral, pulsatility index, resistance index.
--Gynecological measurement and analysis
--Uterus, endometrium, ovary, cervix, follicle measurement.
Obstetric measurement and analysis:
GS gestational sac, CRL head and hip diameter, LV spine length, BPD biparietal diameter, OFD Occipital bone frontal bone diameter, HC head circumference, TAD transverse abdominal diameter, LVW lateral ventricular posterior angle width, HW cerebral hemisphere width, TCD cerebellar lateral diameter , IOD intraocular diameter, OOD external eye distance, BD binocular distance, APTD DBH, TTD transverse DBH, AC abdominal circumference, APD antecedent abdominal diameter, FTA trunk cross-sectional area, HL humerus length, ULNA ulna length, RAD radial length, FL Length of femur, length of tibia, length of fibula of FIB, multiple calculation of APTDxTTD, length of clavicle of clavicle, dysplastic hip (measured hip angle), etc. The gestational age, fetal weight and expected date of birth can be calculated.
Urology measurement and analysis
Prostate volume, bladder volume, residual urine volume, volume of prostate transitional area, hip angle measurement and assessment (neonatal hip dislocation diagnosis), cross-sectional measurement (V-Slice method).
Small organs and Peripheral Blood Vessel Measurement and Analysis
The main measurement and analysis of vascular cross-sectional area, heart rate, per volume, flow per unit time, ejection time, stenosis rate, average velocity of blood flow, RI resistance index, PI pulsatile index.
Measurement report
Obstetric measurement report, gynecological measurement report, cardiac measurement report, urinalysis and other measurement reports. Automatically store measurement results and generate reports symbol
≥95 kinds of symbol position markers with probe position.Through the intuitive body mark detail interface quickly select the body mar.Text markup, presettable text content.Arrow mark, support multiple arrow marks and adjustable direction
XF3600 (E60)color doppler ultrasound diagnostic machine with 3D software optional
Configuration probe
The configuration probe of the instrument showed as below:

Type	Scan model	Frequency range		radius of curvature	Scan width	Scan angle
TC60A	Convex	2.0MHz~5.0MHz		R60mm	_	60°
TL40A	Linear	5.0MHz~12.0MHz		_	L40mm	_
TC10A	Cavity	5.0MHz~8.0MHz		R10mm	_	150°
TC20A	Micro-convex	2.0MHz~4.0MHz		_	_	90°

General Specifications
Package Size and weight: 470mm(L)* 335mm(W)* 560mm(H)/ 11 KG
power source: 19V,10A DC IN, Support battery power
Optional battery:10Ah,14.4V.
Battery Operating Time:≥2 hours Standby time: ≥3.5 Hous
Displayer: 15 inch high brightness and high contrast LCD
I Demo images
II We are an experienced #Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing #OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with #CE and ISO .
III Certificates
CE,ISO,Free sales certificate,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations & ect .
