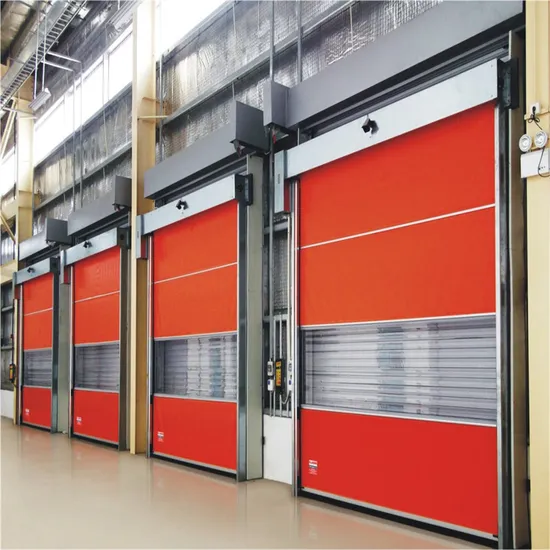

Top Quality Vertical High Speed PVC Overhead Shutter Door

Product Description

Product Information

Product	PVC High Speed Roller Shutter Door
Brand	ZTMY
Original	China
Model Number	ZTC308
Material	Stainless Steel/Aluminum + PVC Fabric /Custom
colour	Blue/Yellow/Customize
Thickness of profile	0.8mm-2.00mm
Opening	Roll Up
Opening Way	Electric/Manual/Remote control/Button
Accessories	Slat/Seal/Rail/Motor/Hinge
OEM/ODM	Acceptable
MOQ	1 Set
Package	Plastic Foam+Paper box+Strong Carton(optional)
Delivery Time	7-15 days after sales confirmation
Port	Guangzhou,Shenzhen etc.
Payment	T/T,Western Union,Money Gram,etc.
Application	Food/Chemical Factory,Refrigeration Plant,Industrial zone,etc.

High speed shutter door, also called fast soft door,which is a barrier door with rapid rise and fall.And its main function is quickly isolation, thus to ensure the air quality of the workshop without dust. High speed shutter door has the functions of heat preservation, cold preservation, insect-proof, windproof, dust proof, sound insulation, fire proof, anti odour, day lighting and so on. It is widely used in food, chemistry, textile, electronics, supermarket, freezing, logistics, storage and other places. It can meet the need of high performance logistics and clean place, saving energy for shutting down automatically. What's more, it can improve working efficiency, create better working environment and so on.
Advantages
1.Multiple functions:it has the functions of thermal insulation, insect proof, noise reduction, smell insulation, indoor barrier effect,reducing energy consumption and keeping the cleanness of indoor working environment .
2.Strong sealing performance: its composite material guide can be closed enough with door frame under the wind pressure. The bottom of the door frame is equipped with aggravated septum ,it can be closely attached to uneven ground to ensure its leakproofness.
3.Various designs :its size can be adjusted according to the size of the installation site, and windows can be added to increase indoor lighting and transparency.
4.Safety:it adopts infrared protection and airbag protection device.
Operating system: button, remote control, manual when power off
Different Designs
Accumulated fast rolling door
Strong wind resistance performance
Size: maximum size up to W20m*H20m
Frame material: rail and casing are high quality painting processed cold rolled sheet, galvanized sheet.
Cord fabric: high density industrial woven fabric
The PVC transparent window can be square or oval, which increases the safety and management convenience.
Opening and closing speed: adjustable
Fast rolling door
Maximum available wall to wall size: W5.5m*H6.5m
Side width: 400mm
Installed space: 450mm
Speed of up and down: 0.6-1.5m/s
Window transparency: 96%
Noise reduction: 60dB
Optional remote control
Voltage: 380V
Motor power: 0.75-3.0KW
High speed rolling door (reinforced)
Inlay balance system
Speed: up to 1.0-2.0m/s (variable frequency of speed).
Curtain material: industrial fiber woven fabric,2.0mm thickness,optional choice with PVC transparent windows.
Control: high-tech microcomputer CPU frequency control system.
Balance system: spring balance system
Wind resistant capability: 9m/s-50Pa (calculated by wall to wall size 3m*3m)
Safety system: automatic safety side blank, safety grating on both sides (height 2m)
Material: galvanized sheet, cold rolled sheet, aluminum alloy slider and door casing.
Maximum size: W8.0m*H6.0m
Popular Colors of PVC for Reference Case
During this 20 years,our company did a lot of projects.Such as,We did the PC rolling door, aluminum shutter door,fire proof door and so on for the Baiyun Airport.And We cooperated with Thailand and completed the largest shopping mall in the Loas-Itecc Mall.And Zhongtai successfully bid the engineer of rolling door supply for the biggest comprehensive square in Burma invested by Singapore-Junction City.And we exported 2500 roller shutter doors to the North Europe and other projects. It said that we have the strength to service for everyone.
Packing&Shipping
Packaging:The bubble bag and plastic foam is our standard packaing and it is for free.If you want to pack the goods with wooden case.We would add additional cost.We can depend on customer's requirements to pack the goods.
Shipping:We offer air,highway,railway and sea transportation.We also offer DHL,Fedxl and other express if you place order for one sets.
Our service 1.Price Inquiry:We would reply you as soon as possible in 24 hours after received the inquiry.
2.Customized Design:We would offer free design and decent design as per your requirement once got the design.
3.Quoted Price:We would quote the best price to you with sasticfactory service.
4.Free sample:Free sample for you to check our quality.
5.Payment Method:Payment is to pay 30 percent as deposit and 70 percent to be paid before loading.
6.Production Process:Start production after confirmed details and receive deposit.
7.Quality Control:Strict quality control of testing procedure before shipping.
8.Lead Time:We could assure that the order would be delivered on time after received the balance before shipment.
9.After-sales services:After sales service would be always following up your order to offer you satisfactory service.

Company Information
Guangzhou Zhongtai Doors Co., Ltd. is a comprehensive and professional company integrating R & D, production, sales, installation and service.It specializes in fireproof rolling shutter, electric rolling gate, wind-resistant rolling door, PC door, stainless steel rolling door, Australian type mute door, European rolling gate, explosion-proof rolling door, garage door, industrial sliding door, aluminum rolling gate, aluminum rolling window, electric stainless steel door, high speed rolling door, etc.
Adhering to the tenet of "knowing more and doing better", Zhongtai devotes itself to providing the perfect and comfortable safety enjoyment for the users, and develop a good cooperative relationship with the distributors, agents and end users in accordance with the principle of "building good faith and creating splendid future together".Our products are applicable to business centers, industrial and mining enterprises, large exhibition halls of science and technology,government agencies.Perfect product quality, excellent after-sales service and competitive price-performance ratio will give you full satisfaction.
Our goal: Customizing the best product for our customers in view of customer demands.
These are the customers who we cooperated with before.
FAQ Q:How to install your product,is it difficult?
A:Easy to install, just screw, no welding.If you need, installation video can be supplied. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
Q:Can you do the full set products according to my project drawing?
A:Yes we can, our engineer will check your project drawings to make sure its accuracy for each different fittings and quantity.
Q:How about your delivery time ?
A:7-15 days after the sales confirmation.
Q:how about your payment terms?
A:T/T ( with 30% deposit ), Western Union etc.
