60m Detection Distance 0-90, 000ppm. M Uav Laser Methane Sensor for Drone
| US$3,500.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MCJJY-50MA
Output Signal Type
Digital Type, Digital Type
Production Process
Integration
Material
Plastic
Sensitivity
High
Customized
Customized
Concentration Range
0-100, 000ppm.M
Effective Distance
0.5-60m
Baud Rate
9600
Operating Voltage
3.2-3.3V
Transport Package
Export Package
Trademark
TOPSKY
Origin
China
Production Capacity
500PCS/Month
Product Description

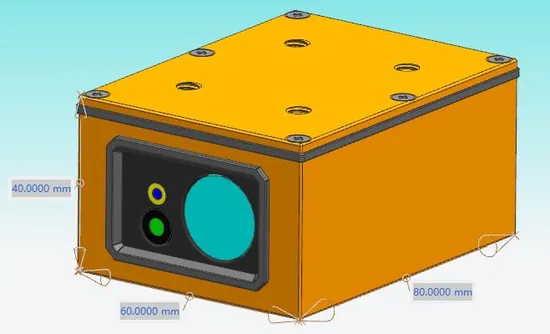

Detailed Photos
60m distance detection drone use laser module methane 0-90000ppm.m
1. Long-distance detection: meet the methane and methane-containing gas leakage detection at a distance of 60 meters
2. Anti-cross interference: specific laser detection, only reacts to methane gas, not affected by environmental conditions
Performance
| Specification | Min value | Typical value | Max. Value | Unit | ||||||
| | ||||||||||
| Storage temperature | -40 | - | 70 | ºC | ||||||
| Operating temperature | -20 | - | 50 | ºC | ||||||
| Working humidity | - | - | 98 | % | ||||||
| Working pressure | - | 101 | - | kPa | ||||||
| Concentration range | 0 | - | 90000 | ppm·m | ||||||
| Effective distance measurement | 0.5 | - | 60 | m | ||||||
| Basic error | ±10%@1000ppm·m | |||||||||
| Minimum resolution | 1 | ppm·m | ||||||||
| Communication Interface | ||||||||||
| TTL3.3V | Baud rate | - | 9600 | - | baud | |||||
| Indicating photoelectric performance | ||||||||||
| Operating Voltage | 2.7 | 3.3 | 5 | V | ||||||
| Working current | - | 50 | - | mA | ||||||
| Signal light electrical performance | ||||||||||
| Operating Voltage | 3.2 | 3.3 | 3.4 | V | ||||||
| Working current | - | 140 | 200 | mA | ||||||
| Optical parameters | ||||||||||
| Detection light | Near infrared (1653nm) laser safety class Class I | |||||||||
| - | 20 | 30 | mW | |||||||
| Indicating light | Green light (532nm) laser safety class Class IIIR | |||||||||
| - | - | 5 | mW | |||||||
