Product Description

Product Description

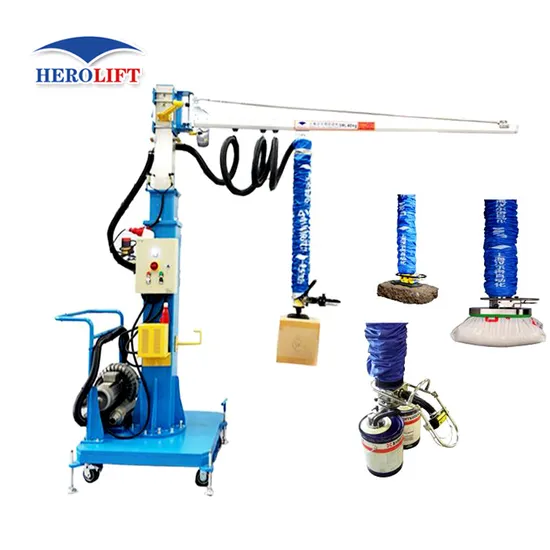

Material handling can be beyond imagination - the customer's on-site manual handling workload is large, inefficient, labor-intensive, difficult to manage, and has industrial and commercial risks to employees, so it is easy to carry by using mobile base for easy processing.
Type carrier, easy to carry.
Handling purpose: warehouse material transfer to change pallets. Low handling frequency is required. It can be moved to take into account multiple stations. It uses vacuum suction cups and powerful drive system to easily handle lifting, moving and rotating.
For different material handling, select quick-change connectors to replace the suction cups according to the actual situation.It's widely used in warehouse loads and unloads sugar bags, woven bags, cartons and drums.
Characteristic
1,Characteristic
Lifting capacity: <270 kg
Lifting speed: 0-1 m/s
Handles: standard / one-hand / flex / extended
Tools: wide selection of tools for various loads
Flexibility: 360-degree rotation
Swing angle240 degrees
Easy to customize
A large range of standardized grippers and accessories, such as swivels, angle joints and quick connections, the lifter is easily adapted to your exact needs.
2,24VDC rechargeable mobile handling suction crane
It can take into account the handling of different stations, mainly used for warehouseWarehouse material transfer.
3,Scissor-type folding arm,
Arm extension 0-2500mm, retractable pendulum.Move freely and save volume. (with self-locking mechanism)
4,AC and DC power switching for different application needs seek
Battery endurance test: the stacker car is still work. Sucker load automatic lifting and lowering test:
Test results: After full charging, the suction crane continues. After running for 4 hours, the remaining battery power is 35%. Power off for charging.The longer the battery life, the longer the absorption,the longer the crane works.

Serial No.	VEL140-2.5-STD	Max capacity	40kg
Overall Dimension	1330*900*770mm	Vacuum equipment	Manually operate the control handle to suck and place the workpiece
Control mode	Manually operate the control handle to suck and place the workpiece	Workpiece displacement range	Minimum ground clearance150mm,Highest ground clearance1500mm
Power supply	380VAC±15%	Power input	50Hz ±1Hz
Effective installation height on site	Greater than 4000mm	Operating ambient temperature	-15ºC-70ºC

Features

Suction foot assembly •Easy replace •Rotate pad head •Standard handle and flexible handle are optional •Protect workpiece surface	Jib crane limit •Shrinkage or elongation •Achieve vertical displacement
Air tube •Connecting blower to vacuum suction pad •Air hose connection •High pressure corrosion resistance •Provide security	Crane Systems and Jib Cranes •Consistently light weight design • Saves more than 60 percent of the force • Stand-alone solution-modular system • Material optional,Scheme customization
Wheel •High quality and robust wheel •Good durability, low compressibility •Esay access to controls and brake function	Silence hood •Design according to performance requirements •Wave sound-absorbing cotton Effectively reducing noise •Customizable exterior painting

Specification

Type	VEL100	VEL120	VEL140	VEL160	VEL180	VEL200	VEL230	VEL250	VEL300
Capacity(kg)	30	50	60	70	90	120	140	200	300
Tube Length(mm)	2500/4000
Tube Diameter(mm)	100	120	140	160	180	200	230	250	300
Lift Speed(m/s)	Appr 1m/s
Lift Height(mm)	1800/2500					1700/2400		1500/2200
Pump	3Kw/4Kw						4Kw/5.5Kw

Type	VCL50	VCL80	VCL100	VCL120	VCL140
Capacity(kg)	12	20	35	50	65
Tube Diameter(mm)	50	80	100	120	140
Stroke(mm)	1550	1550	1550	1550	1550
Speed(m/s)	0-1	0-1	0-1	0-1	0-1
Power KW	0.9	1.5	1.5	2.2	2.2
Motor Speed r/min	1420	1420	1420	1420	1420

Detail display

1,Suction Foot	8, Jib Rail Brace
2,Control Handle	9, Rail
3,Load tube	10,Rail stopper
4,Air tube	11,Cable reel
5,Steel Column	12,Push Handle
6,Electrical control box	13,Silence box( For optional)
7,Steel movable base	14,Wheel

Function
Weightless Control: Operators can handle heavy loads with minimal physical effort.
Versatility: Suitable for various materials and shapes, including non-porous and porous surfaces.
Safety: Reduces the risk of injury and damage by eliminating the need for manual lifting.
Efficiency: Streamlines material handling processes, increasing productivity.
In summary, vacuum tube lifters offer a reliable and efficient solution for lifting operations, making them indispensable in industries like manufacturing, warehousing, and logistics.
Application
For sacks, for cardboard boxes, for wooden sheets, for sheet metal, for drums, for electrical appliances, for cans, for baled waste, glass plate, baggage, for plastic sheets, for wood slabs, for coils, for doors, battery, for stone.

Service cooperation
Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and Established a reliable brand for more than 18 years.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.
