Supply of large mobile crushing stations pebble and granite crushers mobile impact crushing stations

Product Details

Product Description

Product Description
Product parameters
Product features1.The impact crusher is more effective in handling large amount of wet materials and effectively preventing material blockage.
When the moisture content of the materials is too large, the feed chute and the reaction plate of the reaction crusher can be equipped with heating devices to prevent the materials from sticking. The impact crusher does not need to be equipped with a bottom screen plate, which can effectively prevent clogging.
2.The impact crusher is applicable to a wider range of material hardness.
The plate hammer of the impact crusher is firmly fixed on the rotor with a mechanical clamping structure, and has a large moment of inertia when it rotates with the rotor. Compared with the hammer crusher (the hammer head is suspended), the rotor of the impact crusher has greater momentum, which is suitable for crushing harder materials, and its energy consumption is lower.
3.Convenient and flexible adjustment of discharge particle size, wide adjustment range.
The impact crusher can adjust the discharge particle size in a variety of ways, such as adjusting the rotor speed, adjusting the gap between the impact plate and the grinding chamber. The clearance can be adjusted mechanically or hydraulically, and the clearance can be conveniently adjusted by the local operation button or the travel control system with the hydraulic adjustment system.
4.Wear of vulnerable parts is small and metal utilization is high.
The abrasion of the hammer of the impact Stone breaker only occurs on the side facing the material. When the rotor speed is normal, the feed will fall on the surface (striking surface) of the plate hammer, and the back and side of the plate hammer will not be worn. Even the side facing the material has little wear. And the bottom grinding rod can be easily replaced. The metal utilization rate of the plate hammer of the impact crusher can be as high as 45% - 48%.
5.The replacement of spare parts of impact crusher is simple and the maintenance cost is reduced accordingly.
Only 6 plate hammers are installed on the rotor of the impact crusher, and the plate hammers can be easily replaced with the designed special tools. It only takes one shift to replace a set of plate hammers.

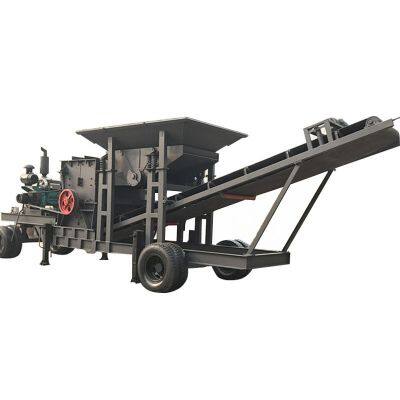

Product Photograph
