Plastic / PE / Seamless Tube Extruder /Extrusion and Cutting Machine

Product Description

Product Description

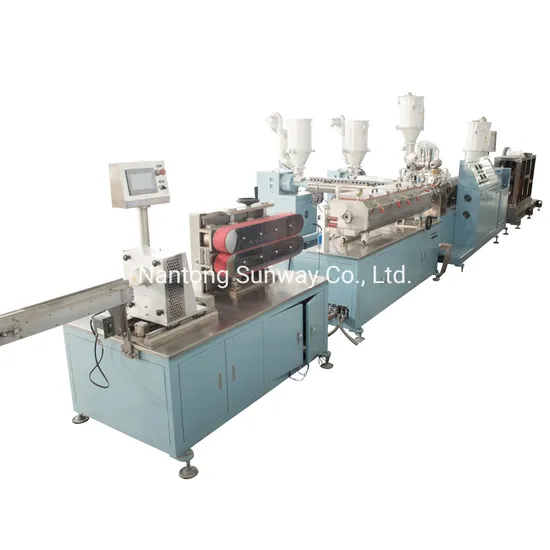

1. B.JG-V Five-layer Full-plastic Tube Extrusion Tube Machine
1.1 Main Technical Parameters
1, Extruding machine: Screw/cylinder 65, 30: 1 Body motor: 11Kw/8, transducer: 15KW Electric heater: Screw/cylinder 5Kw*4 Mould head: 3KW
2, Dimension setting water case: Vacuum pump-Siemens
3, Traction part: To apply the belt traction and the power of the transducer is 0.75KW
4, Cutting part: The coder reads, PLC controlling service machine synchronically traces and cut the tube for setting length. Theservice engine is 0.75KW*2
5, Productivity: 6 meters/min.
6, Production specifications: Diameter: Φ 19mm-Φ 55mm Length: >50mm
2.1 Machine Pictures showing:

2. B.ZJ-IV Automatic Shoulder Injecting Machine (Automatic)
2.1 Machine Introduction B·ZJ-IV 120pcs/min 4-head Automatic Heading Machine, four heads automatic heading machine, high speed automatic shoulder injecting heading machine, automatic heading machine, automatic tube shouder injection machine researched and manufactured in this year, which is a new type machine of advanced science and technology specially for shoulder injection. Its all operation is controlled by PLC of large-scale through a people-machine interface of touch screen. By plastic injecting, spitting, squeezing and welding, it can make a plastic shoulder for plastic tubes and aluminum-plastic tubes. And the shoulder is smooth, beautiful and firm. This machine mainly includes precise clearance apparatus, automatic tube-feeding device, fixed volume injecting device, plastic spitting device, mould-closing forming device, mold separating device, automatic tube-releasing device , automatic material-feeding device and cushion container. The main two parts of this machine have been awarded the national patents.
2.2 Advantage:
B·ZJ-IV 100pcs/min 4-head Automatic Heading Machine, four heads automatic heading machine, high speed automatic shoulder injecting heading machine, automatic heading machine, automatic tube shouder injection machine round shoulder which without injectoin port and closing line. Also no wasting materials during the production, full new materials can make shoulder looks more beautiful.

2.3 Main Technical Parameters:

Power Supply	380V/50Hz
Power	10kW
Air Pressure	≥6Bar
Air Consumption	≥0.5m3
Dimensions	4000×2800×2500mm
Tube Diameter	Φ19-Φ50mm
Tube Length	55-200mm
Productivity	120pcs/min
Weight	3500kg

2.4 Machine details
2.5 Finshed products showing:



3. Tube aluminum foil sealing and screw capping machine
B.ZFX-III double heads aluminum foil sealing and capping machine
3.1 Machine application:
This machine is widely used in toothpaste, cosmetics, pharmaceutical and food industries, suitable for aluminum foil sealing and automatic screw cap of all kinds of aluminum-plastic laminated tube and plastic tube.
3.2 Machine description:
The machine adopts gap dividing mechanism for circular rotary mechanism, precision gap inversion, and around it there are set following functions: automatic tube devices, aluminum foil sealing device, secondary heating sealing device, screw capping device, and secondary screw capping device. The above institutions and device is action under the control of PLC coordination. And in turn to finish the work of automatic tube feed, testing tube feeding condition, aluminum foil sealing, firstly screw capping, secondary screw capping, and tube out. Gap dividing mechanism adopts precision indexing CAM. Driven by motor. And motor speed controlled by the variable frequency. Reasonable distribution the working time of transposition and institution for each station. Transfer balance. And accurate positioning. Running speed can be adjust by the user, it can meet the general requirements of customer.
3.3 The main technical characteristics:
A. Inversion using precision protractor indexing CAM mechanism,Smooth operation
B. Automatic to finish the work of double tubes feeding, capping , tubes out
C.Transposition of motor using frequency to control of speed, and the speed is adjustable
D. Screw cap is the servo motor drive, to ensure screw capping tightness.Through the replacement parts, it can be suitable for variety size of tube and cap . Control part adopts PLC control system, man-machine interface parameter set The size of tube mandrel changed is easy and quick. 3.4 Main Technical Parameters:

power supply	220V/50Hz
power	3.0kW
Air consumption	0.5m3/min
tube diameter	Φ16-Φ50 mm
tube length	70-210 mm
production capacity	80-120pcs/min
dimension	2200×2000×1800 mm mm (L×W×H)
weight	About 900kg

3.5 Machine picture showing:
4. B.YS-6 Six-color Rotating Printer
4.1 Features
4/6 Color Rotating Printer is based on advanced technical design of European countries,combined with practical experiences from tube factories.Being the best Choice of PE tube printing,it has stable quality and easy to operate and maintenance.
Printing blanket unit,mandrel disk unit and oven can obtain the most reasonable in line speed by using individual motor and control constant speed by computer.There are three functions of this machine:printing,coating and drying separately or in line.
It is most suitable for precise & clear printing.It also provide larger printing area & half tone jobs facility.
For method of coating and drying,there are Regular Oven and UV Drying or both together for optional. 4.2 Parameters
Ink Unit Motor:5.5kw with Encoder,Inverter Mandrel Unit Motor:2.2kw Oven Unit Motor:2.2kw Ink Adjust Motor:150 w × 6 pcs Printing Ink:UV Ink Printing Plate:Copper,Zinc,Resin Corona Capacity:1 kw U.V.Dryer Capacity:4 kw,160 w/cm2 Printing Dia: 19~50 mm Printing Length:200 mm(Max) Printing Speed:50~70 pcs/min Air Consumption:0.3-0.5mpa Power Consumption:53 kW Pin No.in Oven:948 pcs(7 Meter Oven) Machine Size:11500×1570×2150 mm 4.3 Features For UV lacquer,special UV oven is required,with which to obtain rapid drying out and more glossy surface.We also offer UV & heater oven in common which can save space and easy to operate and save energy for our customer to choose accordingly. Precise index ensures accuracy of every movement.It is easy to dismount/rectify printing mandrel. Tube feeding system works with detector.Coating will not be proceed without tube on mandrel.Machine will stop automatically if tubes are not taken from mandrel to the oven. Corona system with precipitator ensures cleaning of tubes before printing. Reasonable ink-transmission system shows good effect to large area/screen point printing. Foldable ink unit is easy to clean,change color and stick printing plate. 4.4 Pictures
Company Profile
1. Foil sealing and screwing cap machine workshop
2. seamless / extruder /extrusion / plastic tube machine workshop
3. Automatic tube shoulder /header machine workshop
4. Finished laminated tube making line showing
5. Finished aluminum foil sealing and screwing cap machine showing
6. Finished automatic shoulder /header machine showing
7.Shipment showing
