Hbrvs-187.5 Hardness Tester

Product Description

Introduction:

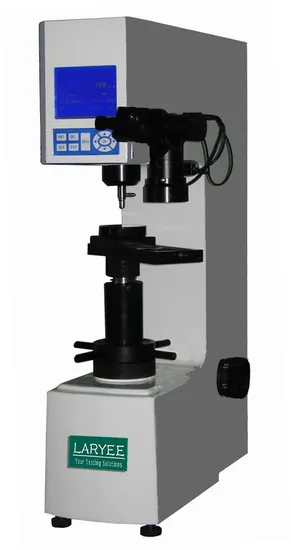

Model HBRVS-187.5 digital Brinell, rockwell and vickers hardness tester with intuitive LCD and singleclip control system, makes hardness testing be automately operated. The machine builted-in printer to record the main technical data of the entire testing process. In addition to manual test platform, it compeletly achieve the realization of the test force imposing, removing, hardness value direct showing and other automated operation.This hardness tester serves the purpose of measuring the hardness of Rockwell, Brinell and Vickers for ferrous, non-ferrous metals, hard metal, alloy, carburized layers and chemical treating layers.
Features
With intuitive LCD and Microchip control system, makes hardness testing be automatically operated.
Built-in printer records the main technical data of the entire testing process.
Adopting manual test platform, it completely achieves the realization of the test force imposing, removing, hardness value direct showing and other automated operation.
With high accuracy, avoiding the human operational error, is a mechanical and electrical integration also high-tech and advanced hardness tester.
It has high precision, easy operation, high sensitivity, reliable variable-Dutch, showing the stable value, which is widely used in factory workshops, laboratories, universities and research institutions.
Specification:

Model	HBRVS-187.5
Rockwell scales	HRA, HRB, HRC
Brinell scales	HBW2.5/31.5, HBW2.5/62.5, HBW5/62.5, HBW2.5/187.5
Vicker's scales	HV30, HV100
Initial test force	98N(10kgf)
Total test force	Brinell test(kgf): 30, 31.25, 62.5, 100, 187.5 Rockwell test(kgf): 60, 100, 150 Vickers test(kgf): 30, 100
Hardness test range	Brinell test (8-650)HB Indication accuracy (%):±2.5
	Rockwell test (70-85)HRA (30-100)HRB (20-67)HRC Indication Accuracy: ± 1HR
	Vickers test (14-1000)HV Indication accuracy (%):± 2
Microscope magnification	37.5×\75×
Hardness reading Indication mode	LCD
Measuring eyepiece	Automatic Digital encoder
Total test foce loading keeping time (s)	1-60s
Maximum height of specimen (mm)	170 (Rockwell) ,140(Vickers, Brinell)
Depth of throat (mm)	165
Dimensions	550×260×800mm
Power supply	1P, AC220V, 50Hz
Weight	80kg
Standard Accessories	diamond cone Rockwell and Vicker's indenter, Ø1.5875mm Rockwell ball indenter, Ø2.5, Ø5mm hard alloyed steel ball Brinell indenter, Big, small, V-shaped test table, standard hardness block(Brinell, Rockwell, Vickers), Weight block(0#,1#,2#,3#,4#), Printing paper, Measuring Microscope Accessories
