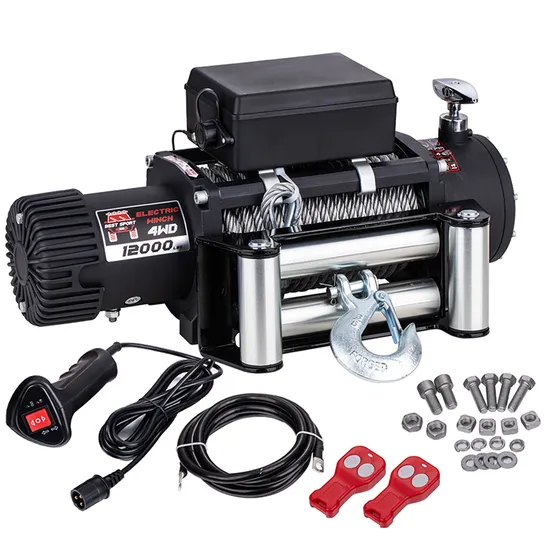

Cheap Electric 4X4 Winches 12000lb

Product Description

Cheap Electric 4X4 Winches 12000lb
SPECIFICATION
Line Pull: 5,443kgs/12,000lbs
Motor: Series Wound DC12V/6.0hp
Gear Train: 3-stage planetary
Gear Ratio: 265:1
Free-spooling Clutch: Rotating ring gear
Wire Rope Size: Φ3/8"×90'(Φ9.5mm×27m)
Drum Size: Φ2.5"×8.8"(Φ64mm×224mm)
LINE PULL

Layer of Wire Rope	Max Line Pull
1	12,000lbs/5,443kgs
2	10,270lbs/4,658kgs
3	9,200lbs/4,173kgs
4	8,450lbs/3,833kgs

LINE SPEED AND AMP DRAW (1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)
No Load	31.8FPM/9.7MPM	75
4,000lbs/1,814kgs	21.6FPM/6.6MPM	195
6,000lbs/2,721kgs	17.7FPM/5.4MPM	240
8,000lbs/3,628kgs	13.4FPM/4.1MPM	291
10,000lbs/4,536kgs	11.2FPM/3.4MPM	335
12,000lbs/5,443kgs	7.9FPM/2.4MPM	350

DIMENSIONS: 534 x 163 x 225mm (21.0" x 6.3" x 8.9")
Mounting Bolt Pattern: 254mm x 114.3mm (10" x 4.5")
STANDARD ACCESSORIES
Wire Rope With Hook
4-Way Roller Fairlead
Control Unit
Controller
Wireless Remote
Mounting Hardware
Hand-saver Strap
PACKAGE
Winch Weight: 36kgs/79.2lbs
Gross Weight: 38kgs/83.6lbs
Box Dimension: 600×260×340 mm (23.6"×10.2"×13.4")
• 20% higher loading test than rated line pull.
• Heavy duty series wound motor delivers superior torque output and faster line speed.
• 3-stage planetary gearbox delivers the most reliable and durable performance.
• Automatic brake in the drum provide powerful braking.
• Rotating ring gear clutch for the rapid rolling out of rope with ease.
• Installation, operation and maintenance with ease.
• Much lower working noise.
• Waterproof IP67 certification.
• CE, RoHS certification.
