Soap Bottles Making Machine Blow Molding Machine

Product Description

Product Description

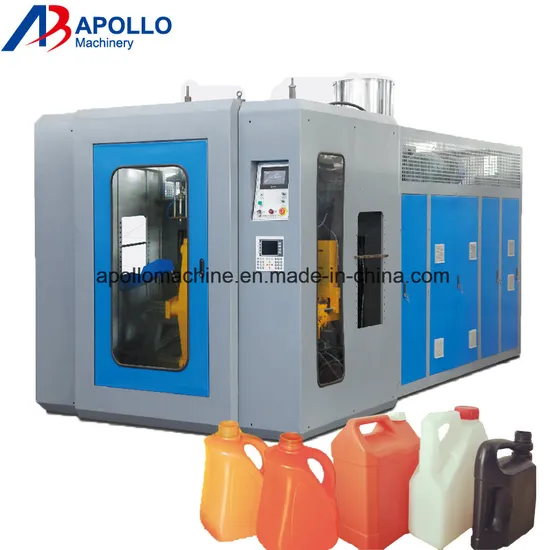

Plastic Jerry Can Full Automatic Two-Stage Customized Extrusion Blow Molding Machine
ABLB75II
Product: 8L bottle
Max volume of this machine: 8L
Power supply: 380/220V 50/60 Hz Tri-phase
Output capacity: 60~90 PCS/h
Die head number: 2
Full automatic or not: Full auto
Suitable raw material: HDPE
Main techinal parameter:

Name			Units	ABLB75II
Max.product volume			L	8
Dry cycle			PC/H	800*2
Screw diameter			MM	75
Screw L/D ratio			L/D	24
Screw drive power			KW	22
Screw heating capacity			KW	7
No. of heating zone			ZONE	4
Output of HDPE			KG/H	100
Oil pump drive power			KW	7.5
Clamping force			KN	80
Max.size of mold			MM	400*420
Template size			MM	390*420
Mold stroke			MM	170-520
Max. die diameter			MM	170
Blowing pressure			KG/CMZ	0.6
Air volume			M3/MIN	0.8
Cooling water pressure			MPA	0.3
Water consumption			L/MIN	80
Size of machine			L×W×H	4.4*2.2*2.7
Weight of machine			TON	8

The main components of the machine:

Electronic Parts
Name	Trader
Micro Computer Control System	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Intermediate Relay	OMRON
Contactor	Schneider from France
Electric Motor	Simens Bede
Servosystem	Delta / MEGMEET
Power supply	TAIWAN MEANWELL
Transducer	ABB
Hydraulic Parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

Company Profile
Certifications
Detailed Photos
Exhibition
Customer photo
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request. 2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional. 3. What is the business item for this project ?
a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .b. Port of Loading: SHANGHAI, CHINA.c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.d. Container needed: One 20GP container. 4. How is APOLLO after-sales service?
a. InspectionBefore delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into operation once reach the client`s factory.b. Debugging InstructionAPOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.C. User TrainingAPOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they could understand the machine features and could operate the machine by themselves. 5. What is the warranty period?
a. APOLLO machine Main parts is one year warranty with a lifelong maintenance.b. Mould within one year warranty.
