1325 3D CNC Wood Carving Machine MDF CNC Router Engraving Milling Machine

Product Description

Product Function

Automatic tool changing 1325 ATC wood cnc router

Application Areas Of Our CNC Wood Four Processing Router Machine: Three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe-shoes, game consoles and panels, mahjong tables,
computer tables and auxiliary processing of panel furniture products.
Furniture Making Machine Features:
1. The whole bed is welded by seamless steel structure, tempering and aging treatment, with strong rigidity and no deformation.
2. Taiwan linear square guide, double row of four row ball slide block, heavy load bearing, smooth operation, high precision, long life, double screw with high precision and precision cutting.
3. Original air cooling spindle 6kW and 4.5kw and the cutting intensity is large.
4. With independent cabinet, separate keyboard operation, split type keyboard operation,easy to learn, and flexibly grasp the use of equipment, more independent.
5. With vacuum equipment and the six zoning vacuum adsorption table is specially designed for the soft material, such as density plate. It can also place different sizes of plates, keep the flatness of the plate surface, make the engraved effect diagram consistent, and improve the loading and unloading time. The vacuum system can be processed in the processing process. Remove wood chips and froth, keep the worktable clean and maintain the equipment indirectly.

Product Specification

Model	One spindle with 12 tools change	4 Spindle with 4 tools
Table Size	1300X2500mm	1300X2500mm
Spindle Power	9KW	2*6kw+2*4.5kw
Working Voltage	AC380V 50Hz,3PH	AC380V 50Hz,3PH
Software Compatibility	Type3/ Artcam Software ,All CAD/CAM software	Type3/ Artcam Software ,All CAD/CAM software
Command Language	G Code	G Code
G.W.	1800KG	1800KG
Frame	Welded structure	Welded structure
Spindle Speed	0-24000RPM	0-24000RPM
Table Surface	Vacuum and T-slot combined table	Vacuum and T-slot combined table
Operating System	Baoyuan	Baoyuan
Servo System	Baoyuan or dongling	Baoyuan or dongling
Vacuum pump	7.5kw	7.5kw
Reducer	Japan Shimpo	Japan Shimpo
Inverter	delixi	delixi

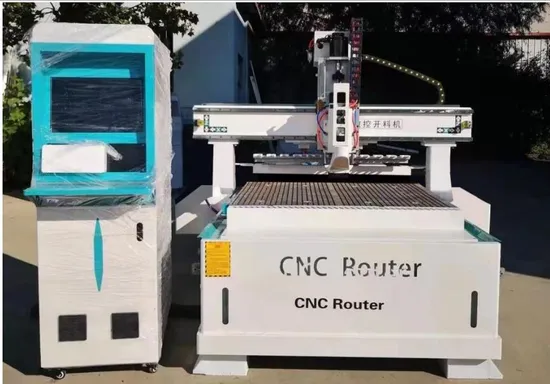

Detail Photos

Certificate & Factory

Warrenty and After Service

1.One year guarantee from the delivery date of this machine under the normal operation of one shift per day
2.We will be responsible for the maintenance of damaged parts which is under normalsituation during warranty period, and all the round -trip courier transportation cost of damaged/repaired replacement parts in warranty period should be bornd by the buyer.Wearing parts are not included.
3.24 Hour technicial support by email or calling
User-friendly Englishi manual for machine using and maintaining.
