High Quality Centralization Lubrication Underground Mine Loader 5t

Product Description

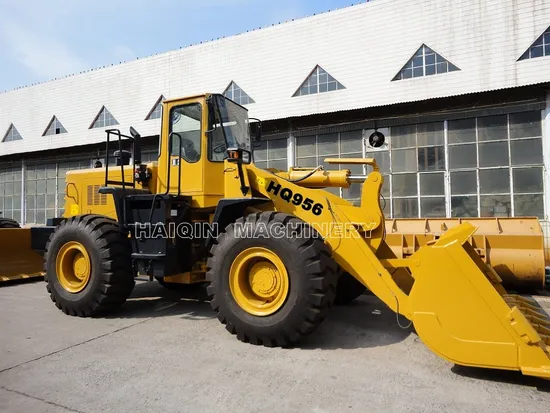

Haiqin Brand Strong 5.0 ton Wheel loader HQ956 with Cummis engine .
1, Wheel loader ( HQ956 ) Features:
1, Wheel loader with Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.
2, Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable
3, Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety
4, Wheel loader with Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise, high reliability. Double-stage air filter is standard equipment for dusty fields.
5, Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable
6, Twin pump-merging flow of working pump and steering pump. When the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy
7, Pilot hydraulic implement controls make operate easy and comfortable
8, The big loading engine side covers made in steel are of good appearance and suitable for maintenance.
9, With centralization lubrication, can used in Desert area.
2, Specifications of HQ956 Wheel loader:

Wheel loader Performance	1	rated load	5000kg
	2	overall weight	17100kg
	3	rated bucket capacity	3m 3
	4	maximum tractive force	152KN
	5	maximum breakout force	≥ 170KN
	6	maximum grade ability	30 degree
	7	maximum dump height	3150mm
	8	maximum dump reach	1250mm
	9	overall dimension (L× W× H)	7920× 3050× 3400mm
	10	minimum turning radius	6640mm
Wheel loader Engine	11	model	Weichai Steyr WD615G. 220
	12	type	lnline water cooling dry cylinder injection
	13	No. of cylinder-bore/stroke	6-126× 130mm
	14	rated power	162kw--2400r/min
	15	maximum torque	860N. m
	16	min fuel-consume ratio	≤ 215g/kw. h
Transmission system	17	torque converter	YJ375
	18	gearbox mode	Power shift normally engaged straight gear
	19	gear shift	4 forward shift 4reverse shift
	20	maximum speed	38km/h
Wheel loader Drive axles	21	main reducing spiral	bevel gear grade 1reduction
	22	decelerating mode	planetary reduction, grade 1
	23	wheel base (mm)	3200mm
	24	wheel tread	2250mm
	25	minimum ground clearance	450mm
Hydraulic system	26	system working pressure	18MPa
	27	boom lifting time	5.95± 0.2s
	28	total time	10.95± 0.5s
	29	fuel tank capacity	300L
	30	function of leveling automatically	yes
Brake system	31	service brake	air over hydraulic disc brake on 4 wheels
	32	parking brake	manual parking brake
Wheel loader Tyre	33	type specification	23.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa

3, Details photos of HQ956 Wheel loader:
4,Factory introduction of Haiqin Machinery
5, Working Case in the foreign countries of Haiqin Machinery' Loaders.
6,Certificate of Haiqin Machinery
7,MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
8,Warranty and Service.
HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.
