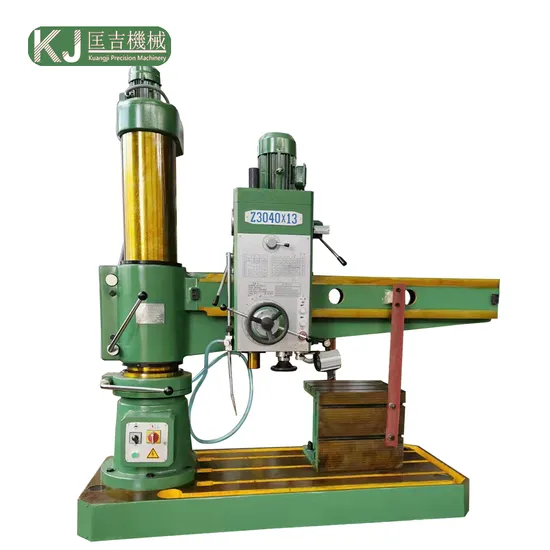

Z3040X13 Standard Radial Drilling Machine Hydraulic Vertical Drilling Machines Manual High Precision 40mm
| US$6,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040x13
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Voltage
380V/220V/400V
Transport Package
Packing for Export
Specification
210*96*240 cm
Trademark
Kuang Ji
Origin
China
Production Capacity
300
Product Description
Radial drilling machine, is a new series of multi-functional products designed and manufactured according to international standards, machine spindle box, rocker arm, column manual clamping; The main shaft turns forward and backward, stops (braking), and operates in neutral with a handle. It has the advantages of perfect performance, safe use, reliable, convenient, easy maintenance, high precision, good rigidity, long life and so on. Used for drilling, reaming, reaming, tapping and boring. Widely used in machining parts.| 1. Maximum drilling diameter 40mm |
| 2. Distance from spindle center line to column generatrix Maximum 1300 mm; Minimum 200 mm. |
| 3. Distance from spindle end face to base working surface Maximum 1064 mm; Minimum 264 mm. |
| 4. Spindle box travel distance: 1100mm |
| 5. Swing arm lifting distance 550 mm |
| 6. Swing arm lifting speed 1.13m/min |
| 7. Swing arm rotation angle ±180° |
| 8. Spindle taper hole (Morse) No.4 Morse. |
| 9. Spindle stroke 250 mm. |
| 10. Scale plate drilling depth per revolution 102 mm. |
| 11. Maximum torsional moment allowed by spindle 250N·m |
| 12. Maximum feed resistance allowed by spindle 10kN |
| 13. Number of spindle speed steps 8. |
| 14. Spindle speed range 71-1800 R/min |
| 15. Number of spindle feed steps 4 |
| 16. Spindle feed range 0.13-0.54 mm /r |
| 17. Main motor power 3 Kw |
| 18. Voltage 380 V 50Hz |
| 19. Net weight of machine tool 1570 Kg; Gross weight 1700 Kg |
| 20. Outline dimensions of machine tool (length × width × height) 203×75×235.4 cm |
| 21. Packing case size (length × width × height) 210×96×240 cm |
