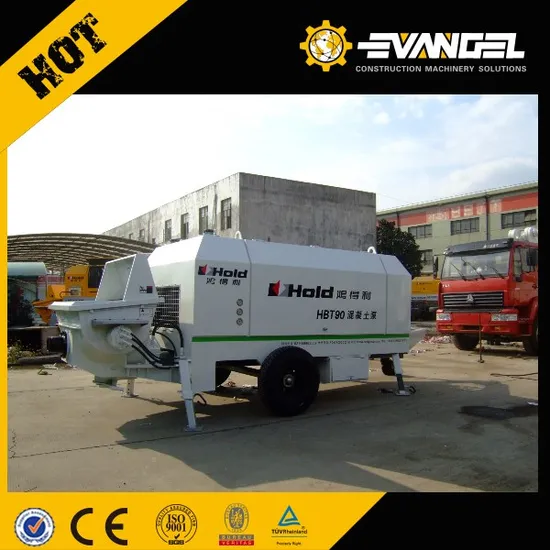

Liugong Trailer Concrete Pump Price Hbt60-9-75z
| US$50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HBT60-9-75Z
Productivity
60m²/h
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Dimension: Lxwxh
5850X2050X2260mm
Total Mass
5500kg
Theory Concrete Output
60m3/H
Hopper Volume
0.7m3
Transport Package
Nude Package
Specification
ISO, CE
Trademark
Liugong
Origin
Guangxi, China
Production Capacity
50units/Month
Product Description
Liugong Trailer Concrete Pump price HBT60-9-75Z
1.Theory Concrete Output:60m3/h
2.Total mass:5500kg
3.Hopper volume:0.7m3
4.Theory vertical pumping height:100m
5.Dimension:5850x2050x2260mm
Parameter
No. | Item | Unit | HBT60-9-75Z |
1 | Theory Concrete Output (Low / High Pressure) | m3/h | 60 |
2 | Concrete Pressure (Low / high pressure) | Mpa | 9 |
3 | Hydraulic system pressure | Mpa | 32 |
4 | Rotation speed | r/min | 1480 |
5 | High / low pressure switch | No | |
6 | Distribution valve | Gate valve | |
7 | Pumping cylinder diameter/ Stroke | mm | 205/1400 |
8 | Main oil pump discharge | ml/r | 190 |
9 | Motor power | kw | 75 |
10 | Voltage/ Frequency | V/Hz | 380/50 |
11 | Hydraulic tank volume | L | 500 |
12 | Height of adding material | mm | ≤1500 |
13 | Hopper volume | m3 | 0.7 |
14 | Total mass | kg | 5500 |
15 | Concrete slump | mm | 80-230 |
16 | Theory vertical pumping height | m | 100 |
17 | Theory direction change times Low/High pressure | times/min | 22 |
18 | Dimension: LXWXH | mm | 5850×2050×2260 |
