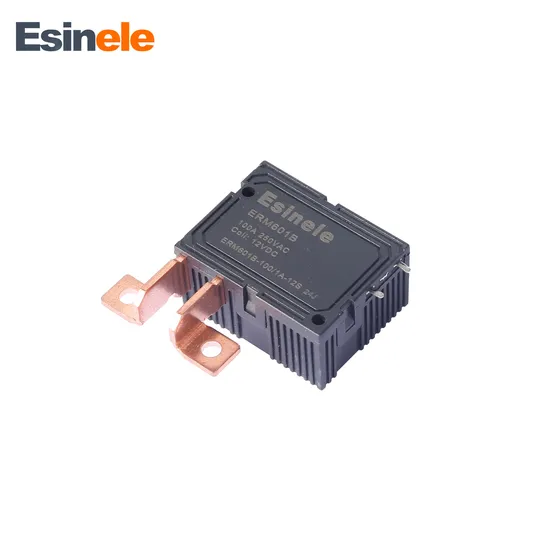

Breaking Current 50A Form a (C) Latching Relay for E-Car Charging Pole Dpdt Factory with Manual Switch Double Coil
| US$2.00-4.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
ERM601D
Phase
1
Electricity Type
Ac
Number of Pole
2
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Contact Form
1A/1b
Coil Voltage
6-48VDC
Coil Type
Single Coil and Double Coil Optional
Switching Current
90A
Contact Material
Agsno2
Transport Package
Box, Carton
Specification
38.4*30.4*16.6 mm
Trademark
Esinele
Origin
Zhejiang, China
HS Code
8536411090
Production Capacity
1000000/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
ERM601DCharacteristic:
Small size,90A switching capability.
Low coil consumption ,ultra-low temperature rise.
Low contact resistance.
Outline size: 38.4×30.4×16.6mm ERM601D
Characteristic:
Small size,90A switching capability.
Low coil consumption ,ultra-low temperature rise.
Low contact resistance.
Outline size: 38.4×30.4×16.6mm
Product Parameters
| Contact Specification | |
| Dimensions(mm) | 38.4×30.4×16.6mm |
| Contact Form | 1A/1B |
| Contact Material | Silver Alloy |
| Max Switching Current(Anti-load) | 60A/80A |
| Max Switching Voltage | 28VDC/250V AC |
| Max Switching Power | 2800W/25000V A |
| Wight | 45g |
| Coil Specification | ||||||
| Rated Coil Voltage | 6VDC | 9VDC | 12VDC | 24VDC | 48VDC | |
| Rated Coil Voltage | Single Coil (±10%Ω) | 36 | 81 | 144 | 576 | 2304 |
| Double Coil (±10%Ω) | 18 | 40.5 | 72 | 288 | 1152 | |
| Power Consumption | Single Coil 1.0W;Double Coil 2.0W | |||||
| Pick-up Voltage | ≤75% Rated Coil Voltage | |||||
| Drop-out Voltage | ≤75% Rated Coil Voltage | |||||
| Max. Applicable Voltage | ≤120% Rated Coil Voltage | |||||
| Pick-up Time(At Rated Voltage) | ≤20ms | |||||
| Drop-out Time(At Rated Voltage) | ≤20ms | |||||
| Bounce Time | ≤2ms | |||||
| Characteristics | ||
| Ambient Temp | -40~+70ºC | |
| Ambient Humidity | ≤75% Annually average | |
| Anti-vibration | 10~55Hz, 0.5mm (Double Amplitude) | |
| Anti-shock | 98m/s2 , 11ms | |
| R.H. | 45%~85% | |
| Contact Resistance | ≤2.0mΩ (1A/6VDC) | |
| Insulation Resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between Contacts | 1750VAC 50/60Hz(1 Minute) |
| Between Contact & Coil | 4000VAC 50/60Hz(1 Minute) | |
| Life | Electrical Life | ≥1×104 OPS |
| Mechanical Life | ≥5×106 OPS | |
| External Diagram |
| Wiring Diagram |
Production Equipment
FAQ 1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 200,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!
