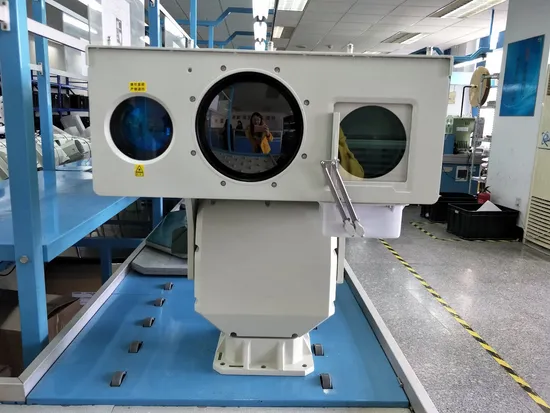

Long Range Multisensor PTZ Infrared Thermal Imaging IP Camera for Border Surveillance
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
SHR-WHLV3020TIR185R
Type
IP Camera
Sensor
CMOS
Kind
Electric Focusing Lens or Auto Focusing Lens
Certification
CE, FCC, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Auto BLC, Multi Sensor
Effective Distance
Thermal Distance 10km
Remote Control
With Remote Control
Name
Three-Sensor Thermal Imaging Camera System
Protection Grade
IP66
Thermal Detect Distance for Human
3600m
Thermal Detect Distance for Vehicle
9900m
Night Vision
3km
Day Vision
5km
Pan/Tilt
PTZ Heavy-Duty
Specification
CE, FCC
Trademark
SHEENRUN/OEM
Origin
China
Production Capacity
1000
Product Description
Long Range Multi-sensor PTZ Thermal Camera System| Operating distance | Visible light | Night vision | 3000m | |
| Day vision | 5000m | |||
| Thermal imaging | Object | human (1.8m×0.5m) | Vehicle(2.3m×2.3m) | |
| Detection distance | 4320m | 11880m | ||
| Recognition distance | 1080m | 2970m | ||
| Identification distance | 540m | 1440m | ||
| Visible Lens | Focal lens | 12.5~750mm | ||
| FOV | 0.5°~28.7° | |||
| Double lens | supporting(optional) | |||
| Auto focusing | supporting(optional) | |||
| Fog penetration | supporting(optional) | |||
| Visible Camera | Sensor type | 1/1.8"Progressive Scan CMOS | ||
| Coding mode | H.264/MJPEG/MPEG4 | |||
| Video resolution | 1080P,CIF,supporting three stream | |||
| Video bit rate | 32Kbps~16Mbps | |||
| Video frame rate | 1~25f/s(50Hz),1~30f/s(60Hz) | |||
| Laser Illuminator | Illuminating lens | 60* zooming laser telephoto lens | ||
| Power | 20W | |||
| Wave length | 810nm | |||
| Illuminating angle | 0.3°~18°continuous change | |||
| Light homogenization | MCIC multi-tube core fusion mixed mode light homogenization technology | |||
| Infrared lens | Focal length | 36~180mm | ||
| FOV | 2.5°×2.0°~12.7°×10.2° | |||
| F value | F1.0~F1.2 | |||
| Lens control | electric zooming, electric focusing(auto focusing optional) | |||
| Thermal Camera | Detector type | uncooled microbolometer focal plane array(VOx) | ||
| Effective pixels | 324×256 | |||
| Spectral range | 8~14μm | |||
| Temp sensitivity | ≤50mK@F1.0,300K | |||
| Frame rate | 25Hz | |||
| Image processing | DDE, pseudo color | |||
| Pan-tilt | Carrying capacity | 50kg(top load) | ||
| Angle | Horizontal 360°continuous rotation,pitching: -60°~+20° | |||
| speed | Horizontal 0.01°~12°/s,pitching 0.01°~8°/s | |||
| Preset bits | 255 | |||
| Cruising | 8 paths,10 bits each path | |||
| Anti-lightning | 2000V | |||
| interface | Power supply interface | AC24V | ||
| Network interface | 1×10Base-T/100Base-TX,RJ45 | |||
| Other interfaces | RS422 communication,BNC video output | |||
| Environment indicators | Working temp | -25ºC~+55ºC | ||
| Storage temp | -40ºC~+65ºC | |||
| Protection grade | IP66 | |||
| Power supply | Whole machine power supply | AC24V±10%,appendant AC220V~AC24V/8A water proof power supply | ||
| Whole machine power consumption | ≤170W | |||
| Physical features | Whole machine weight | 45kg | ||
| Installation method | Outdoor pedestal mounting | |||
