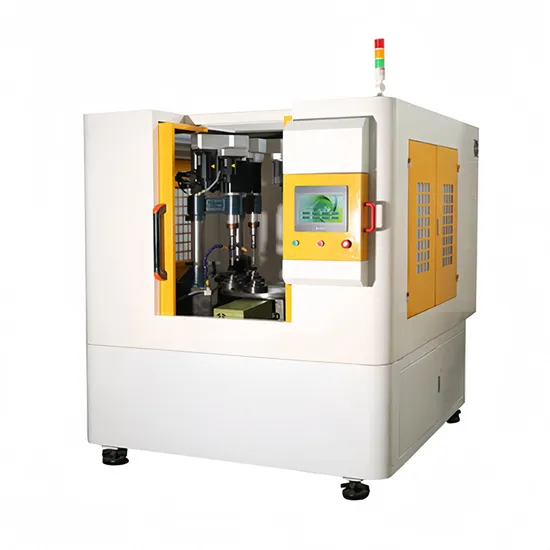

Hc56-30 Customizable Vertical CNC Honing Machine for Cylinder Grinding From China Max. Dia: 30mm
| US$28,600.00-62,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HC56-30
Type
Honing Machine
Processing Object
Cylinder
Abrasives
Whetstone
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Honing Machine
Precision
High Precision
Certification
ISO 9001
Condition
New
Roundness
1um
Cylindricity
2um/100mm
Roughness
Ra0.1um
Max. Axis
5
Work Inner Diameter
3-30mm
Spindle Speed
50-3000rpm
Max. Honing Length
200mm
Total Power
20kw
Transport Package
Ship/Train
Specification
2500kg
Trademark
SNALPO
Origin
China
HS Code
8460241900
Production Capacity
800pieces/Year
Product Description
Product DescriptionProcessing Diagram
Product Features
CNC honing machine Features
1. Hinge honing is a single stroke superhard material honing hole processing technology developed on the basis of traditional honing, utilizing the characteristics of fixed size machining of hinge holes. It can achieve diversified surface textures of the processed holes.
2. Compared with honing, hinge honing technology can effectively reduce the error of expansion and contraction honing, and improve the roundness, accuracy, surface roughness and other data of workpiece processing, achieving high efficiency, high speed, and high precision processing.
3. Currently, according to demand, hinge honing machines are more commonly used for high-precision inner hole machining of guide sleeves, hydraulic valve sleeves, automotive forks, step hole valve sleeves, and other workpieces. Precision hole hinge honing has significant advantages for some difficult to machine parts.
Product Parameters
| CNC honing machine HC56-30 main technical parameters | ||
| Machining accuracy | Roundness | ≤1um |
| Cylindricity | ≤2um/100mm | |
| Roughness | ≤Ra0.1um | |
| Structure | Axis | 5 |
| Work station | 6 | |
| Spindle | Work inner diameter | Φ3-Φ30mm |
| Speed | 50-3000rpm | |
| Stroke | Max. speed | 25m/min |
| Max. length | 200 | |
| Feed | Min. value | 0.1um |
| Others | Weight | 2500kg |
| Size | 1905*2200*2050mm | |
| Total power | 20kw | |
