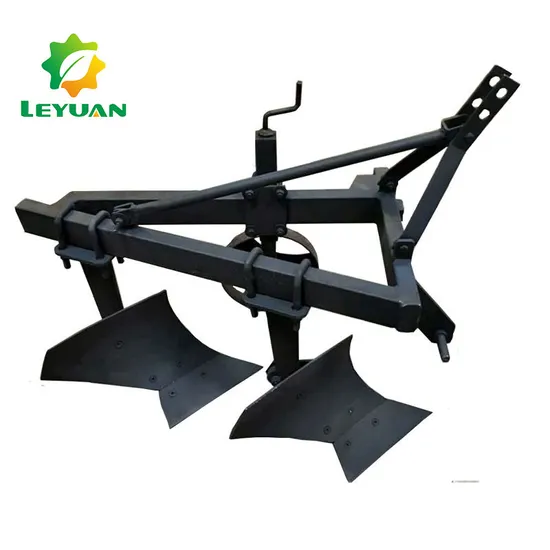

Share Plow Mouldboard Plough 1L--320 1L--220

Product Description

Product Description
1L Series share plow is attached to four-wheel tractor ,mainly used for plowing loam,the sand loam,cultivated and dry land the main frame is welded with 16mm thick wall rectangular pipe, and the ploughshare wall is made of high-quality 65mm high manganese steel. After heating treatment, it has good wear resistance, elasticity and other properties, and long service life. The 20 / 25 / 30 / 35 series plough is equipped with 12-120 horsepower tractor, and is driven by full suspension connection. The machine is suitable for dry land cultivation in loam and sand pulp area. It has simple structure, large cultivation adaptability, excellent operation quality and effect, smooth surface, flat surface and broken soil.
Product Parameters

Model	1L-220	1L-320	1L-420	1L-520	1L-225	1L-325	1L-425	1L-525
Width of cut (mm)	400	600	800	1000	500	750	1000	1250
Depth of cut (mm)	200~250
Farrow	2	3	4	5	2	3	4	5
Weight (kg)	64	100	130	170	125	170	240	270
Tractor power (hp)	15~25	25~35	35~45	50~60	25	40	50	65
Mounted cat	Three point mounted

Model	1L-330	1L-430	1L-530	1L-335	1L-435	1L-535
Width of cut (mm)	900	1200	1500	1050	1400	1750
Depth of cut (mm)	220-270
Farrow	3	4	5	3	4	5
Weight (kg)	230	330	420	300	470	520
Tractor power (hp)	50	70	80	55	75	90
Mounted Cat	Cat II

Detailed Photos
Our Advantages
Direct factory of various kinds of disc plows/ploughs ,agro disc harrows ,cultivator ,trailers ,mowers ,seeders,threshers and so on, and the related agricultural machinery spare parts. With complete production line of material cutting,heat treatment, hot forging ,machining,welding ,powder coated painting, you will find the best choice between price and quality from Yucheng Leyuan Machinery co.,ltd
FAQ
Q1: Are you manufacturer or trading company ?
A: we are direct factory , welcome to our factory for inspection.
Q2:Where is your factory located?
A: Yucheng city ,Shandong province,very near to Jinan city .
Q3: Can I get some samples?
A: Yes,only if it is small part and you would like to pay the courier cost. Regarding the big parts or machines,small trial order is suggested.
Q4:Can we put our logo on it ?
A:Yes, of course , we can do it according to your detailed requirements.
Q5: Can we visit your factory to test quality before delivery?
A:Yes, of course ,we sincerely welcome you to visit us at your convenient time.
Q6: Warranty.
A:1 years warranty time since it arrives your destination port .
Q7: Payment.
A:30%TT as the first payment, the balance before shipment..
L/C at sight.
