Enterprise Router Netengine 8000 M4 Integrated Chassis Components

Product Description

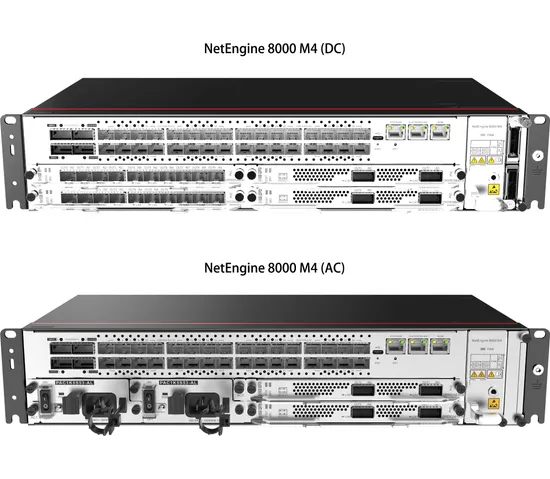

Product Description Overview: NetEngine 8000 M4

Part Number Model Description 02355FTG CR8PM4BASAC2 NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box) 02355JFT CR8PM4BASAC6 NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box) 02355FTE CR8PM4BASDC2 NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box) 02355JFR CR8PM4BASDC6 NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box)

Technical specifications

NE8000 M6 Integrated Chassis Components
Part Number	02355FTG	02355JFT	02355FTE	02355JFR
Model	CR8PM4BASAC2	CR8PM4BASAC6	CR8PM4BASDC2	CR8PM4BASDC6
Description	NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box)	NetEngine 8000 M4 Integrated AC Chassis Components(Including AC Power,Fan Box)	NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box)	NetEngine 8000 M4 Integrated DC Chassis Components(Including DC Power,Fan Box)
Height x Wide x Depth	8.89cm(2U) x 44.2cm x 22cm
Weight with packaging [kg(lb)]	DC: 9.9 kg (21.83 lb) AC: 11.9 kg (26.24 lb)
Weight without packaging (full configuration) [kg(lb)]	DC: 10.4 kg AC: 10.8 kg
Weight without packaging [kg(lb)]	DC: 7.2 kg (15.87 lb) AC: 9.2 kg (20.28 lb)
Weight with packaging (full configuration) [kg(lb)]	DC: 13.1 kg AC: 13.5 kg
Typical power consumption (with configuration) [W]	DC: 283.4 W AC: 305.1 W
Typical heat dissipation (with configuration) [BTU/hour]	DC: 919.47 BTU/hour AC: 989.87 BTU/hour
Heat dissipation mode	Air cooling
Power supply mode	DC, AC
Input voltage range [V]	DC: -40 V to -72 V AC: 90 V to 290 V
Rated input voltage [V]	DC: -48 V/-60 V AC: 200 V-240 V/100 V-127 V dual-live wire, supporting 240 V HVDC
Maximum input current [A]	DC: 30 A AC: 10 A
Rated output power [W]	DC: 1200 W AC: 1500 W
Number of slots	8
Number of service board slots	DC: 6 AC: 2
CPU	16-core, 2.0 GHz
SDRAM	16GB
Storage	16 GB
Flash memory	64MB
Switching capacity [bps,bit/s]	2.4 Tbit/s (Bidirectional)
Redundant fans	1+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F) (one fan module contains two fans)
Redundant power supply	1+1
Noise at normal temperature (acoustic power) [dB(A)]	< 65 dB(A)
Airflow direction	From left to right
Maximum input cable size	DC: 10 mm^2. Recommended: 4 mm^2 (0-14 m), 6 mm^2 (15-20 m), 10 mm^2 (21-30 m) AC: Standard C13 cable
Front-end circuit breaker/fuse	DC: ≥ 16 A (Based on long-term evolution requirements and site conditions, the recommended current is greater than or equal to 32 A.) AC: ≥10 A
Long-term operating temperature [°C(°F)]	DC: -20°C to +60°C (-4°F to +140°F) AC: -20°C to +55°C (-4°F to +131°F)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158 °F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 0.5°C/min (32.9°F/min), non-condensing
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage altitude [m(ft.)]	< 5000 m (16404.2 ft.)
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
MTBF [year]	DC: 33.4 AC: 31.62
MTTR [hour]	00000001
Availability	DC: 0.999998291 AC: 0.999998195
Maximum number of electrical ports	DC: 96 AC: 56
Maximum number of 100GE ports	DC: 12 AC: 8
Maximum number of 40GE ports	DC: 12 AC: 8
Maximum number of 10GE ports	DC: 72 AC: 52
Maximum number of FE ports	DC: 96 AC: 56
Maximum number of physical ports on the entire device	116
Maximum number of 50GE ports	DC: 12 AC: 8
Maximum number of 25GE ports	DC: 64 AC: 48
Maximum number of GE ports	DC: 96 AC: 56
