PVC PE PPR Pipe Electrical Conduit Pipe Extrusion 4 Cavities Production Line

Product Description

Product Description

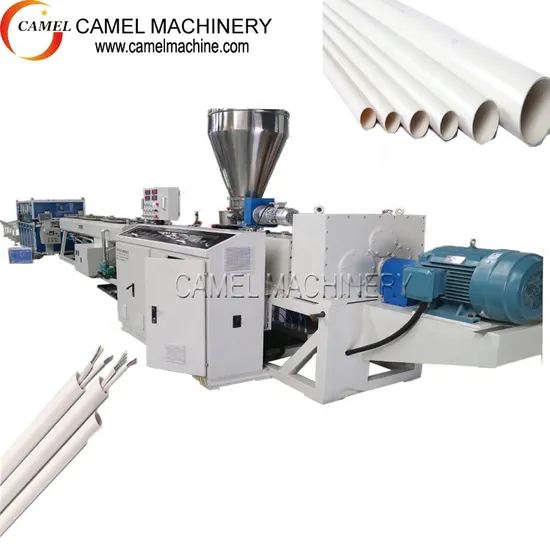

Four output Pvc pipe extrusion line
20-63mm 2-cavity PVC PE PPR pipe making machine
»PVC pipe extrusion line it is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit etc. Features: »Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.

The standard PVC pipe extrusion machine include: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker/automatic belling machine.

Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes. The main electrics for PVC pipe extrusion machine adopt Siemens motor, ABB inverter, RKC/OMRON temperature controller.

Product Parameters

Diameter range(mm)	Extruder Model	Main motor power(KW)	Max. Capacity(KG/H)		Max. Haul off speed(m/min.)
16-32 Four	SJSZ65/132	37 AC	250	10×4
20-63 Dual	SJSZ65/132	37 AC	250	10×2

Detailed Photos
Extruder Model: SJSZ65/132
Screw and Barrel Material 38CrMoAlA, Nitriding, Surface Chrome plate, Nitriding Layer Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.
Screw rotation speed: 1-38r/min
Capacity: 200-300kg/h
Motor Power: AC 37kw
Motor brand: Siemens Brand
Inverter: ABB
Mould
Pipe range: 16-32mm 4cavity//16-63mm 2-cavity
Mold material: 40Cr, Inner surface polished
Material of the calibrator: Stannum Bronze
Vacuum Calibrator and Water cooling tank
Tank materials: Stainless steel 304 Vacuum tank: 1 meters Water cooling tank: 3 meters
Tractor and cutter
Clamping Mode: Pneumatically Drive Traction speed: 0.3-25m/min
Speed Adjusting Mode: Frequency conversion adjustable
Calculate length with meter counter
Cutting way: Dust free cutting
Automatic Belling Machine
Delta PLC touch screen control 8 Pipes heating and 8 Pipes belling at the same time

Company Profile
Certificate
Customer
Packaging & Shipping

FAQ
Q1:What about the payment terms?
A1: Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2: T/T,L/C at sight.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3: Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4: Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5: Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6: 380V 50hz 3 phase or any other voltage according to client's requirement.
