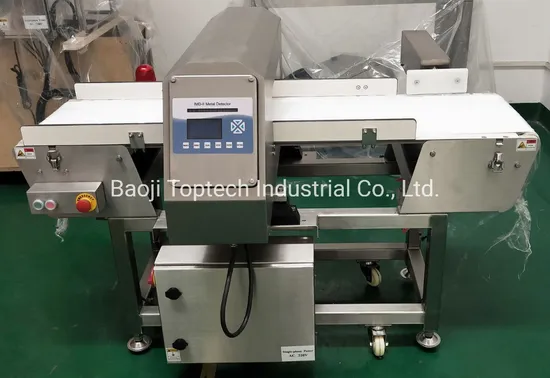

High Accuracy Food Metal Detector Auto Reject for Food Inspection

Product Description

Metal detector, metal detectors machine, industrial metal detector, food metal detector, meat metal detector, chicken metal detector, fish metal detector, toy metal detector, rice metal detector, wheat flour metal detector, bread metal detector, cookie metal detector, tunnel metal detector, digital metal detectors machine, belt metal detector, conveyor metal detectors machine, metal detection machine, detect metal, check metal, find metal, free fall metal detector, pipe metal detector, gravity metal detector
Features:
1. Adapt phase discriminating technology that can efectively refrain product effect;
2. Adapt advanced DSP technology and leading intelligent algorithm which can improve detection Sensitivity and promote stability of the machine;
3. New auto balance technology make the machine work more stable.
4.Be able to detect various metals like iron, stainless steel, copper and aluminum, etc.;
5. LCD display, Chinese&English operation menu;
6. Self-learning function contributes toautomatically choose suitable working parameters according to different products;
7. Memory funcion for registering various products(Max: Over 20 items);
8. Fit to check small size packaged product,such as bread,cookies,nut,meat,fruit with small weight;
9. Adjustable conveyor height from 750 to 850m;
10. Auto counting system for inspected product
11. Password setting for administrator
12. English language dispaly
13. Simple conveyor structure makes it convenient to disassemble and assemble;
14. Special design of conveyor belt to avoid deviation;
15. Excellent quality with attractive price;
16. Made of stainless steel, fairly good waterproof ability.
Usage:
The equipment is widely used in Aquatic products, meat and poultry produtcs, preserved food, flour products, dried fruit, vegetables chemical materials, medical drugs, toys and primary products, etc.
Technical Parameter:
Sensitivity Feφ (mm): 0.5mm
Sensitivity Non-feφ (mm): 1.0mm
Sensitivity SUS316φ (mm): 1.2mm
Detection height(mm): 80/120/150/200mm
Detection width(mm): 300/400mm
Power(W): 200-400
Belt speed(m/min): 10~50
Alarm method: Alarm to stop transfer or reject setting

Standard model		JL-IMD3012	JL-IMD4012
Theory		Balanced Coil
Test weight		MAX 10Kg	MAX 10Kg
Tunnel width		300mm, 400mm
Tunnel height		120mm	120 mm
Sensitivity	Fe(Φ)	0.8mm
	SUS304(Φ)	1.5mm
Length		1200mm
Height		750mm - 850mm
Belt speed		25m/min
Belt width		260mm, 360mm
Alarm action		Alarm and Stop
Power supply		AC220V±10% 50Hz 250VA
Weight		80Kg-100Kg
