TPK611C/1 China Heavy Horizontal Milling Boring Machine with CE
| US$63,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TPK611C/1
Controlling Mode
Hydraulic
Number of Shaft
3
Hole Diameter
101-150mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Coordinate Boring Machine Type
Horizontal Type
Tool Type
Fine Knife
Logo
Customer logo
Type
Horizontal
Warranty
1 Year
Key Selling Points
High Productivity
Motor Power (kw)
18.5kw
Color
customer require
Voltage
220/380/400V
Table size
1320*1010mm
Transport Package
Plywood Case in Carton
Specification
5375x2995x3035 mm
Trademark
WMTCNC
Origin
China
Production Capacity
15sets Per Month
Product Description

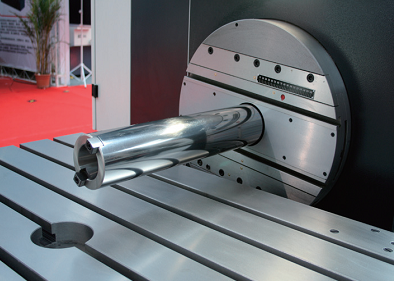

Product Description1. This machine equipped with a single column, side hung box, four-point positioning worktable, manual rotation (optional Hirth CNC turret 360x1 °indexing). 2. X, Y, Z axis controlled by CNC system, could realize simultaneous motion. 3. Boring axis' flexible and axis of facing head are controlled by servo motor, can realize automatic processing 4. X, Y, Z axis with rectangular sliding guide .Teflon plastic paste process, shock absorption, and high precision 5. The spindle box with counterweight balance, spindle and axis of facing head are controlled by AC servo motor.
| Max. load of worktable | 2500kg |
| Table size | 1320*1010mm |
| Max. allowable torque on spindle | 1100N.m |
| Max. allowable torque on facing head tool holder | 1100N.m |
| Max. allowable axial feed force on spindle | 13000N |
| Spindle speed step | No step |
| speed step of facing head | No step |
| Spindle speed range | 12-1100rmin |
| Facing head speed range | 4-130rmin |
| Rapid feed speed of spindle | 3600mm/min |
| rapid feed speed of facing head radial tool holder | 1180mm/min |
| Spindle diameter | 110mm |
| Max. distance from spindle nose to table surface | 905mm |
| Min. distance from spindle nose to table surface | 5mm |
| Vertical travel of headstock | 900mm |
| Spindle axial travel | 550 mm |
| radial travel of facing head tool holder | 160 mm |
| Longitudinal travel of table | 1350 mm |
| Cross travel of table | 1250 mm |
| Max. boring diameter of spindle | φ240 mm |
| Max. diameter of facing head tool holder | φ630 mm |
| Max. drilling diameter | φ50 mm |
| Spindle taper | BT50 |
| Main motor power | 1115kW |
| Rapid feed speed of X,Y,Z | 5000mm/min |
| positioning accuracy of coordinate | X,Z0.04 mm Y0.032mm |
| positioning accuracy | 0.02/500mm |
| Repeat positioning accuracy | 0.014/500 |
| Overall dimension(L*W*H) | 5375×2995×3035 mm |
| Net. weight | 12300kg |
