Datang High Quality Metal End Face Milling Machine
| US$10,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DX-1215
Type
Meter Milling Machine
Object
Hardware
Structure
Desktop
Milling Cutter Type
Standard
Milling Cutter Structure
Standard
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE
Condition
New
End-Face Machining Rage
1200*1500mm
Horizontal Milling Speed
50-440mm/Min
Vertical Milling Speed
22-550mm/Min
Milling Angle
0-45
Transport Package
Standard
Specification
Standard
Trademark
Datang
Origin
China
HS Code
84688000
Production Capacity
5 Sets Per Month
Product Description

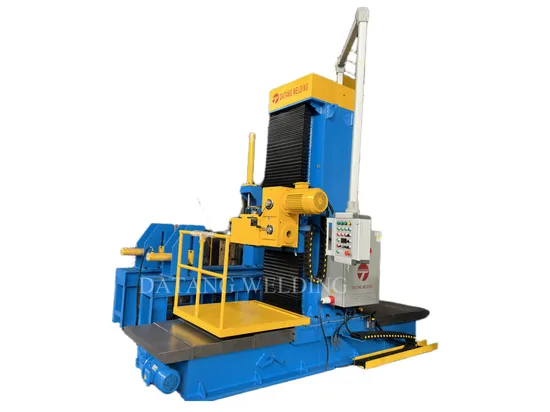

The face milling machine consists of milling and cutting head, elevator column, work table, lathe bed, mechanical feeding system, electrical control system, rail protection device, tools etc.This face milling machine is used to mill the end face of Box-beam and H-beam, and the degree of milling head can be adjusted manually in vertical direction to bevel the end face. The hydraulic support rack for choice can fix the beam and is open top, which is easy for hoisting.
| Model | DX 0810 | DX 0812 | DX 1212 | DX 1215 | DX 1520 | DX 2020 | DX 2025 | DX 2040 | DX 3060 | ||
| Machining range of face(mm) | 800× 1000 | 800× 1200 | 1200× 1200 | 1200× 1500 | 1500× 2000 | 2000× 2000 | 2000× 2500 | 2000× 4000 | 3000× 6000 | ||
| Level the milling speed(mm/min) | 50-440 | 50-500 | |||||||||
| Vertical milling speed(mm/min) | 22-550 | 22-550 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | ||
| Horizontal motor (kw) | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 7.5 | ||
| Vertical motor (kw) | 1.5 | 2.2 | |||||||||
| Milling angle(°deg) | 0-45 | ||||||||||
| Milling Head Specifications | TX25A | TX32A | TX40A | TX50A | |||||||
| Milling head power (kw) | 4 | 5.5 | 7.5 | 11 | |||||||
| Cutter rotational speed (rpm) | 125-1420 | 125-1440 | 1440 | 1460 | |||||||
| Applicable cutter diameter(mm) | 100~160 | 125~250 | 160~320 | 200~400 | |||||||
| Gross Weight (t) | 4 | 4.1 | 5.5 | 5.8 | 7.6 | 8.3 | 8.5 | 9 | 15.5 | ||
