off Grid Inverter 6kw 5kw 4kw 3kw 2kw 1kw Pure Sine Wave of off Grid Toroidal DC 24V 48V to AC 220V 230V Combined with AC Charger
| US$109.85-700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GPSW-II
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Product Name
3.5kw High Frequency Hybrid Solar Inverter with PA
Voltage
220V
Capacity
3.5kw
Caetificate
IEC
Transport Package
Safety Packing
Specification
2 KW
Trademark
kemapower
Origin
China
HS Code
8504403090
Production Capacity
60, 000PCS/Year
Packaging & Delivery
Package Size
550.00cm * 310.00cm * 230.00cm
Package Gross Weight
15.000kg
Product Description

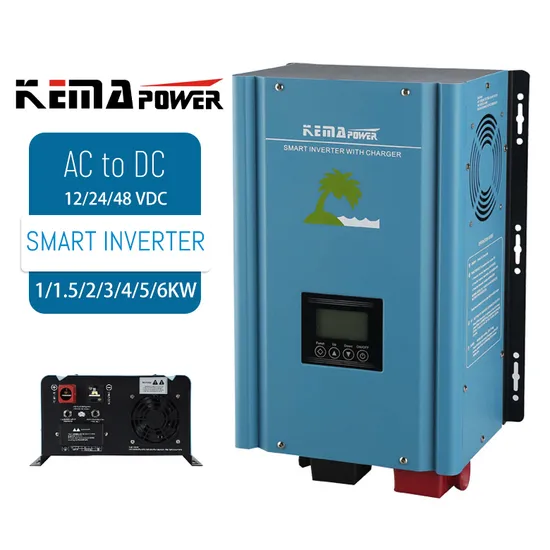

Sine Wave Power Inverter With ChargerGPSW-II 1-6K
KEY FEATURES Low Frequency Power Inverter with charger GPSW-II 1-6KW 2 in 1 Off Grid hybrid design, Inverter + Power Charger Selectable Grid power priority, Solar Power priority or power Saver Modes Use as backup HOME UPS or Off grid solar inverter Low frequency toroidal transform, Pure sine wave with AVR LCD display, Smart setup and simple operation by LCD Automatic Transfer Time less than 10ms Max 30A Adjustable Charge Current, selectable battery type Auto transfer time 10 Ms, UPS design Comprehensive protection for overload, short-circuit, Battery Low and else Smart fan and Alarm Rs232 / SNMP communication optional TECHNICAL SPECIFICATIONS
| ITEM | Model | GPSW-II-1KW | GPSW-II-1.5KW | GPSW-II-2KW | GPSW-II-3KW | GPSW-II-4KW | GPSW-II-5KW | GPSW-II-6KW |
| Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Efficiency | >95% under AC mode, >88% under DC mode, Toroidal transfromer | |||||||
| Battery and Charger | Rated Voltage | 12/24 /48VDC | 24/48VDC | 24/48VDC | 48/96VDC | |||
| Charge Current | 30A(default), C0-C6 adjustable by LCD Monitor | |||||||
| Battery Type | U0-U7 selectable by LCD Monitor | |||||||
| Input | Voltage Range | 85-138VAC/170-275VAC | 170-275VAC | |||||
| Frequency | 45-65Hz | |||||||
| Output | Voltage Range | 110VAC/220VAC;±5%( Bat mode), 110VAC/220VAC; ±15%( Line mode) | ±5%( Bat mode)/220VAC | |||||
| Frequency | 50/60Hz±1%( bat mode) | |||||||
| Wave Form | Pure sine wave | |||||||
| Transfer Time | less than 10 ms (typical) | |||||||
| Overload | 110-120%/30S;>160%/300ms | |||||||
| Power Factor | 0.9~1.0 | |||||||
| Protection | Battery over voltage/low voltage, overload, short circuit protection,over temperature protection, etc. | |||||||
| Working Mode | Grid Priority | UPS Mode, Grid power priority, Battery power ( Solar Power) as backup | ||||||
| Battery Priority | Solar inverter Mode, battery Power priority, Grid power as Backup | |||||||
| Power Saver Mode | Load > 5% continous output, < 5% no output and detect load per 10MS | |||||||
| Mode Select | setup by the LCD Monitor | |||||||
| LCD Display | Working Mode, input and output VAC, HZ, BAT %, Load %, setup working mode, battery type ,Buzzing icon, Fault | |||||||
| Optional | RS232 Communication, SNMP Net Agent,Remote Control OPTION | |||||||
| Operating Ambient Temperature | 0-40ºC | |||||||
| Storage Ambient Temperature | -15 - +50ºC | |||||||
| Operating/Storage Ambient | 0-90% No condensation | |||||||
| Product Size: L*W*H (mm) | 486*247*179 | 555*307*189 | ||||||
| Package size: L*W*H(mm) | 550*310*230 | 640*370*240 | ||||||
| Net/Gross Weight(KG) | 13/15KG | 15KG/17KG | 17/19KG | 22/24KG | 27/29KG | 31/33KG | 33/35KG | |
| ATTENTION | the inverter does not build in solar charger controller | |||||||
