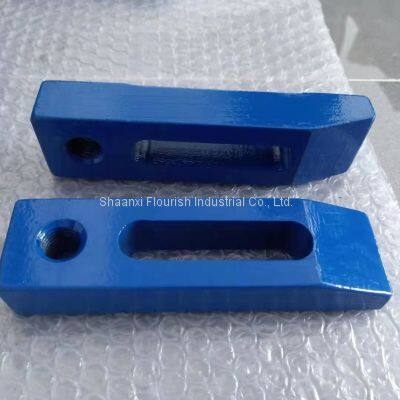

Painting M16 Carbon Steel Injection Mould Clamp

Product Details

Product Description

Product Description
Detailed Product Description
Material:Surface:Size:Application:Standard:Made Of:High Light:

Carbon Steel	Paniting
M16	Mould Clamp
Customized	Steel Plate
M16 Injection Mould Clamp, M20 Injection Mould Clamp, Painting Injection Mould Clamp

Customized M16 Injection mould clamp /M20 Heavy Duty tapped end mold press clamp
Clamping workpieces with parallel clamp is a common method for milling machines, especially on horizontal milling machines, where end milling cutters are often used for milling. When installing workpieces with clamp on a milling machine, the tools used by the machine tool are relatively simple, mainly including machine clamps, T-shaped bolts (or T-shaped nuts) and nuts, etc., in order to meet the needs of installing workpieces of different shapes, There are also many shapes.
Pay attention to when using the clamp:
(1) The position of the clamp should be arranged appropriately, and it should be pressed on the processing place with good rigidity of the workpiece, and the clamping force should be appropriate, otherwise the workpiece with poor rigidity is prone to deformation.
(2) The machine mattress iron is correctly placed under the clamp, and the height should be the same as or slightly higher than the workpiece, otherwise the compression effect will be reduced.
(3) The clamp bolt machine tool should be as close to the workpiece as possible, and the distance between the bolt and the workpiece should be less than the distance between the bolt and the shim, so that the pressing force can be generated.
(4) The bolts must be tightened, otherwise the work piece will move due to insufficient pressure, which will damage the work piece, machine tool and tool.

M	H	L	D	D1	L2	L3
M16	25	150	40	17	45	75
M20	40	200	70	22	55	110
