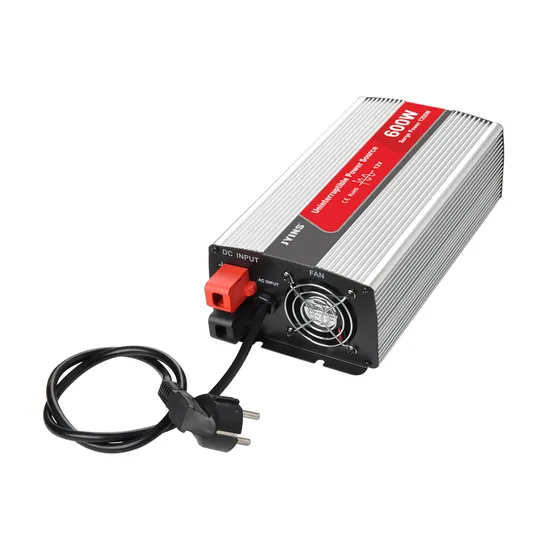

Uninterruptable Power Inverter 600W /with Charger

Product Description

Protection Function:
-Low voltage alarm & Shutdown
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse Polarity protection
·Soft start
·Auto.reset after being in protected
·Grounding protection Product Description
Product Parameters

Model	JYPM-0.6K-1	JYPM-0.6K-1	JYPM-0.6K-2	JYPM-0.6K-2
Rated power	600W
Peak power	1200W
Input voltage	DC12V	DC24V	DC12V	DC24V
Output voltage	100VAC or 110VAC or 120VAC±5%		220VAC or 230VAC or 240VAC±5%
Unload current less than	0.3A	0.1A	0.3A	0.1A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input current	10A
Input voltage range	10-15.5V	20-31V	10-15.5V	20-31V
Low voltage alarm	10.5±0.5V	21±0.5V	10.5±0.5V	21±0.5V
Low voltage protection	10±0.5V	20±0.5V	10±0.5V	20±0.5V
Over voltage protection	15.5±0.5V	31±0.5V	15.5±0.5V	31±0.5V
Low voltage recover	13±0.5V	24±0.5V	13±0.5V	24±0.5V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	14.8V±0.5V	29.5V±0.5V
Protection function	Low voltage	Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage	LED Red light on, shut down
	Over load	LED Red light on, shut down
	Over temperature	Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Dimension(mm)	285x180x78mm
Packing(mm)	310x245x195mm
Net./gross weight(g)	3200/4130g
QTY/Ctn	4 Pcs
Meas./Ctn(mm)	500x405x425mm
Gross weight/Ctn(g)	16720g
Warranty	1 years
Configuration	Standard
Cooling method	Intelligent air cooling
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product.

Our Advantages
FAQ
1,Q:Why your quotation is higher than other suppliers?A:In domestic market, the high and low inverter brands are mixed together. There are many
low-cost solar power inverter is actually some assembled small unlicensed workshops, it crudely,
to reduce costs and use of substandard components for assembly, there is a very big security risk!
In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!..............................................................................................................................................................2,Q:How many categories does it have according to the output waveform ? A:Type one: JYM Modified Sine Wave inverter, which uses PWM pulse width modulation to generate
modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube,
it greatly reduces the power loss and increases the soft-start function, effectively ensuring the
reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of
most electrical equipment. But it still exists 20% harmonic distortion problems when running
sophisticated equipment, can also cause high-frequency interference to radio communications
equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency,
small noise, moderate price, and thus become the mainstream products in the market. B:Type two: JYP Pure Sine Wave inverter, which adopts isolated coupling circuit design, high
efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for
all kinds of load, can be connected to any common electrical devices and inductive load devices
(such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output
of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it
does not exist grid tie electromagnetic pollution...............................................................................................................................................................3,Q:Is the output voltage of our inverter stable ?A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when
measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need
make a especial explanation : many customers found it is unstable when using conventional
multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only
test pure sine waveform and calculate datas...............................................................................................................................................................4,Q:What is a resistive load appliances?A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric
fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to
resistive loads. Our modified sine wave solar power inverters can drive them successfully...............................................................................................................................................................5,Q:What is the inductive load appliances?A:It refers to the application of electromagnetic induction's principle, produced by high-power
electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove,
refrigerator, air conditioner, energy saving lamps, pumps, etc. These products'power are far more
than the rated power (about 3-7 times) when start. only pure sine wave inverter is available to them...............................................................................................................................................................6,Q:What should be noticed when installing inverter?A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and
do not put foreign objects into the inverter.Rember turn on the inverter before turn on the appliance.
