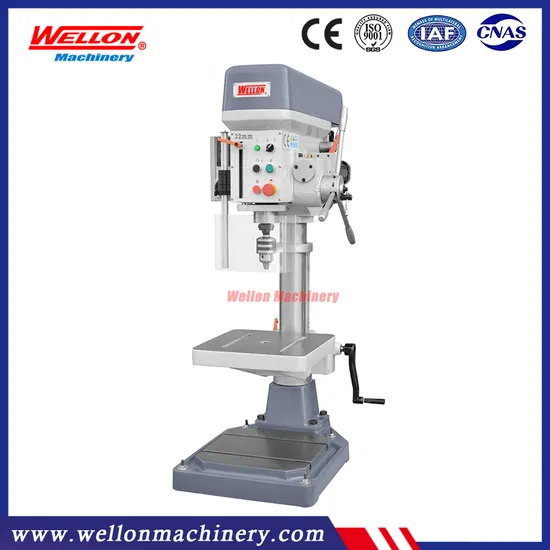

Auto Feed Drilling Machine ZB4132G/ZB4132G/ZB4116G/ZB4120G Variable Speed Drillingtapping Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
Spindle auto feed with variable feeding rate.High spindle rigidity.
Threading by automatic switching of the left turns.
The spindle head, column, table and column base made of the highest quality of seasoned castings.
Spindle and transmission shafts of hardened and heat treated steel.
Built-in led lamp.
High engine power.
A large spindle stroke.
Readable control panel.
Working table manually lifted with 360 rotation and assembly grooves.
Belt transmission cover equipped with an extreme safety switch.
Adjustable drill chuck with key and mounting on the Morse taper.
Technical parameter:

Model	ZB4132G	ZB4132GP	ZB4116G	ZB4120G
Max.Drilling capacity	32mm	32mm	16mm	20mm
Max.Tapping capacity	M24	M24	M20	M12
Diameter of column	100mm	100mm	85mm	70mm
Spindle travel	150mm	150mm	135mm	100mm
Spindle feed rate	20-204mm/min	20-204mm/min	20-204mm/min	20-204mm/min
Distance spindle axis to column	265mm	265mm	260mm	193 mm
Max.Distance spindle nose to table	390mm	390mm	366mm	330 mm
Max.Distance spindle nose to base	745mm	745mm	678mm	613 mm
Spindle Taper	MT3	MT3	MT2	MT2
No. of Speeds	5 steps	5 steps	5 steps	5 steps
Spindle speeds range	280~1875r/min	280~1875r/min	280~1875 rpm	480~4100 rpm
Dimension of workable surface	380x400mm	380x400mm	300x320 mm	265x285 mm
Dimension of base	310x380mm	310x380mm	376x566 mm	360x480 mm
Overall height	1130mm	1130mm	1245 mm	1130 mm
Main motor	1.5 kw	1.5 kw	1.1 kw	0.75 kw
Coolant motor	/	0.04kw	/	/
Feed motor	90w	90w	90w	90w
Weight	238kg	238kg	170 kg	145 kg
Packing size	104x64x151cm	104x64x151cm	99x56x140 cm	85x54x128 cm

Standard accessories:
4132GP with coolant pump
Work lamp
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
