Updated Version of Xt870h 0.8m3 Small Articulated Backhoe Loader Xc870K

Product Description

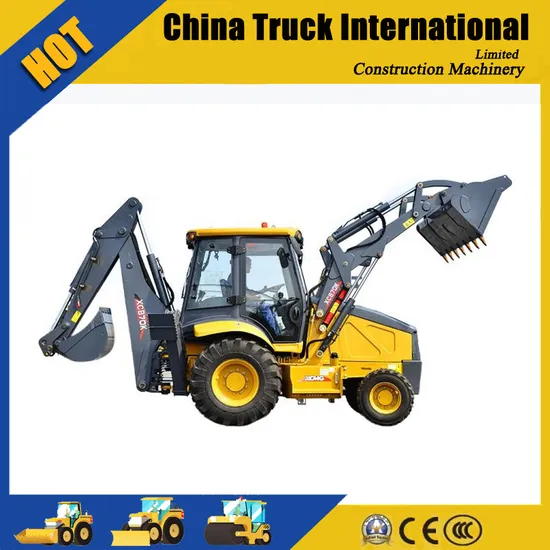

Updated Version of XT870H 0.8m3 Small Articulated Backhoe Loader Xc870K
The XC870K/XC870HK is a K-series backhoe loader from X C M G . Based on the maturity and technical performance of the existing products, it upgrades the engine emissions, lightweight structural components and optimization of working device parameters to further enhance product comfort, safety, maintainability, reliability and protection. Sex and economy.
Performance characteristics:
The overall layout and bridge load distribution are more reasonable, the driving stability is better, the maximum driving speed can reach 40km/h, and the transition speed is faster;
The leading hydraulic system distribution technology in the country is energy-saving and efficient; the maximum flow rate is 154L/min, which meets more configuration requirements of the attachments;
It can be configured with various environmental adaptability technologies such as high temperature, high cold, high altitude, high dust, etc., and users can customize according to the needs of use;
The loading end is the industry leader, 15%-20% higher than similar models; the excavation structure and the hinge point are advanced, the bucket corner industry is the largest, and the soil holding capacity is strong.
The XC870K adopts a mid-mounted wing-type leg with a beautiful appearance, strong carrying capacity and high stability.
The XC870HK adopts a side-shifting H-shaped leg to ensure stable operation, while the excavating device has a side shifting function and a wider mining range.
Specifications: Items MODEL

		XC870K	XC870HK	Unit
Chassis type		integrated	integrated
Drive style		4 drive/2 drive	4 drive/2 drive
Digging working device		middle	side
Outline dimensions(L×W×H)		7440×2350×3450	6075×2350×3520	mm
Total weight		7600	8200	kg
Max. travel speed		≥40	≥40	km/h
Wheelbase		2180	2180	mm
Engine	Power	82(Cumins) 74(Cumins) 74.9(Detz Dalian) 70(Weichai )	82(Cumins) 74(Cumins) 74.9(Detz Dalian) 70(Weichai )	kW
	Supplier	tier 3 tier 2 tier 3 tier 2	tier 3 tier 2 tier 3 tier 2
Loading device	Bucket capacity	0.8	o.8	m³
	Rated load	2500	2500	kg
	Max. breakout	66	66	kN
	Max. discharge height	2770	2770	mm
	Max. discharge distance	755	755	mm
	System pressure	24	24	Mpa
Digging device	Bucket capacity	0.3	0.25	m³
	Max. digging radius	5460	5420	mm
	Max. digging depth	4425	4320	mm
	Max. digging force	63	63	kN
	System pressure	24	24
