Animal Feed Mixer Ribbon Mixer

Product Description

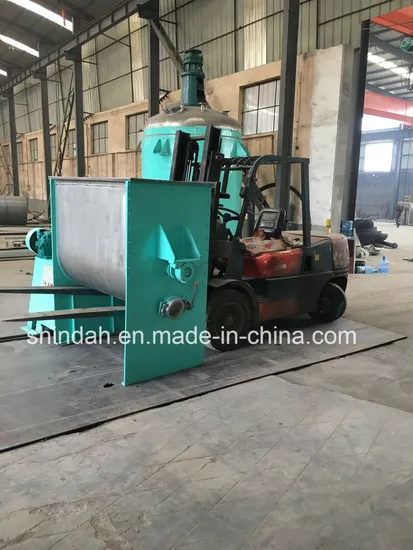

Horizontal Ribbon Mixer
Ribbon mixer is designed for dry materials mixing, meantime liquid streams can be added. This mixer is composed of U-shaped cylinder, double helical ribbon blade and transmission parts. In working condition, the outer ribbon pushes materials from two sides to the middle, while the inner ribbon pushes materials from the middle to both sides. Through continuous convective circulation, the materials are sheared and mixed thoroughly and quickly. Batch cycle time shorten due to high mixing efficiency.
Application:
Dry Powder, Putty, Modified Corn Starch, Real Stone Paint, Chemical, Food, Animal feed, Pharmaceutical, Fertilizer, Plastic, Battery, Cosmetic.
Models:
50L~20000L are available
Fabricating Materials: SS304, SS316L, Carbon steel/MS
Heating/cooling jacket optional
Discharging Outlet: Bottom or Side
Customized machine is available.

Model	Total Volume	Effective Volume	Power
WHJ100	100L	60L-80L	2.2KW-3KW
WHJ300	300L	180-240L	4KW
WHJ500	500L	300L-400L	7.5KW
WHJ1000	1000L	600L-800L	11KW
WHJ1500	1500L	900L-1200L	11KW-15KW
WHJ2000	2000L	1200L-1600L	15KW
WHJ3000	3000L	1800L-2400L	18.5KW
WHJ4000	4000L	2400L-3200L	22KW
WHJ5000	5000L	3000L-4000L	22KW
WHJ6000	6000L	3600L-4800L	30KW
WHJ8000	8000L	4800L-6400L	37KW
WHJ10000	10000L	6000L-8000L	45KW
WHJ12000	12000L	7200L-9000L	45KW
WHJ15000	15000L	9000L-11000L	55KW
WHJ20000	20000L	12000L-15000L	90KW
