Heavy Duty Dredger Sand Suction Dredge River Dredging 6 Inch Slurry Pump Slurry Mud High Head Pump Solids Handling Diesel Engine High Head Sand Gravel Pump

Product Description

High Quality Sand Suction Dredge Pump Mining Industry Construction Sand Gravel Horizontal Slurry Dredging Dredger Pump for Sale
Product Description

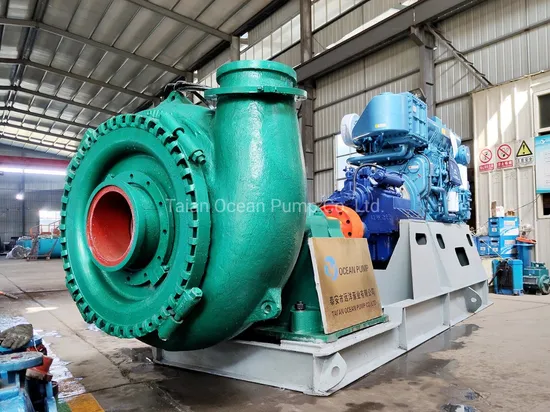

OCEAN ZS series gravel pump is designed for continuously handing the most difficult higher abrasive slurries which contain big solids. The ZS gravel pump is casted as a single pump casing structure with smooth flow channel. The flow channel parts are made of hard nickel and high chrom wear resistant alloy. The outlet direction of horizontal gravel pump can be adjusted according to the requested direction.
The OCEAN ZS gravel pump is suitable for long distance delivery, delivering strong abrasive sand, sludge in metal melting, dredging and so on.
Product Parameters

Model	Flow(m³/h)	Head(m)	Speed(r/min)	ID/OD(mm)	Max. Particle Dia (mm)	Effi. (%)	NPSHr(m)
ZS150	36-252	3.5-51	600-1400	150/100	82	30-35	2.5-3.5
ZS200	136.8-576	10-48	800-1400	200/150	127	50-60	3-4.5
ZS250	216-979.2	13-50	500-1000	250/200	178	45-65	3-7.5
ZS300	360-1512	11-58	400-850	300/250	220	50-70	2-4.5
ZS350	504-3168	6-66	300-700	350/300	241	60-68	2-4.5
ZS450	864-3816	9-48	250-500	450/400	254	60-72	2-4.5
ZS300-H	612-2232	28-78	350-700	300/250	210	60-72	2-4.5
ZS250-H	396-1296	18-80	500-950	250/200	180	60-72	2-4.5

Features
1. Thickened pump spare parts.
2. High quality bearing components, high chrome alloy flow channel parts, long working life.
3. Wide flow channel , good cavitation performance, high efficiency, abrasion resistance.
4. Long working life and high operating efficiency can meet a variety of bad working conditions.
Application
• River, lake, sea dredging • Sand and gravel Handling • Solid handling • Wet sand suction • Coal-washing plant • Fine tailing • Mineral sands • Marine dredging
