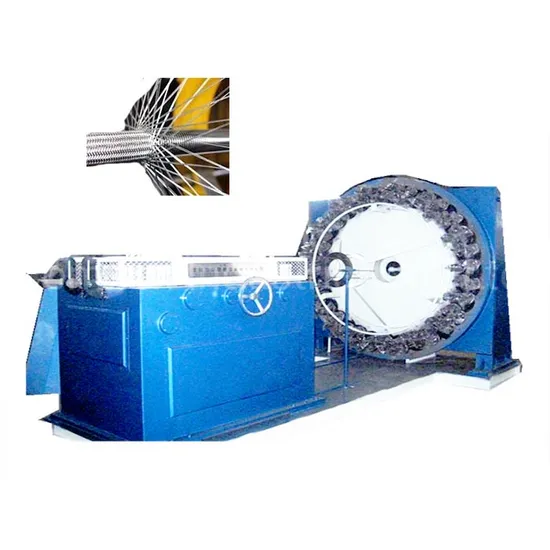

Coaxial Cable and Wire High Speed Braiding Machine with Spindle for Sale

Product Description

Coaxial Cable And Wire High Speed Braiding Machine With Spindle For Sale
1. Feature:
* The machine has high speed compared with the ordinary steel wire knitting machine efficiency is a little more than 1 times.
* Easy operation, high precision. This machine all adopt the automatic control, PLC+man-machine dialogue interface and servo motor. Greatly improve the precision of weaving. Reduce the operation difficult of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools large capacity, saves the steel waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function
* Break line stop alarm function
* Fixed length function
* Fault detection capabilities
* Three color alarm prompt
2. specifications:

Product model	BJZ16-2S	BJZ20-2S	BJZ24-2S	BJZ36-2S
Spindle Rpm(r/min)	48	38.4	32	18
Max.Braid diameter(mm)	15	22	25	45
Bobbin capacity(kg)	7.5	7.5	7.5	7.5
Braiding angle	54°44"	54°44"	54°44"	54°44"
Machine dimension(mm)	5800*1816*2100

3. Machine pictures: Decker Carriers Caterpillar
Auto lubrication system Braiding details
4. FAQ of steel wire braiding machine 1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Structure of the braid?
3. How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
