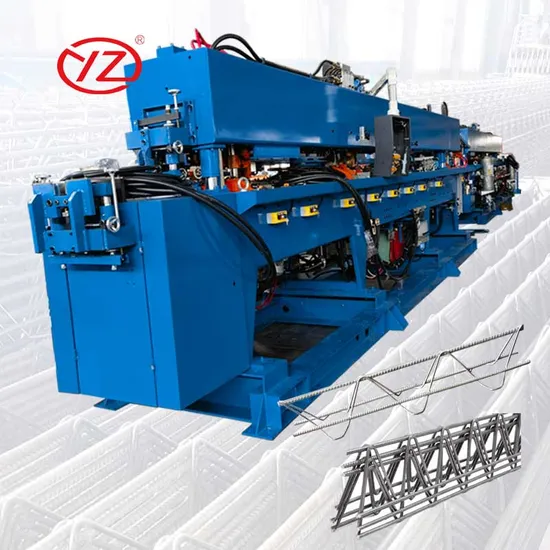

Lattice Girder Welding Line Full Automatic Machine

Product Description

Product DescriptionAdopt patent electrode welding head developed by our company and it can improve the life-time of the electrode to reduce customers' cost
Using an oil tank with wave bending, and the wave crest interval is adjustable 190-210mm
The main unit of truss adopts integrated structure and is suitable for different height truss(Height of truss is 70-350mm adjustable)
The device power is provided by hydraulic station, which can provide it enough power to assure the welding quality.At the same time, it provides sufficient power for the feeding clamping system to ensure that the steel bars will not move during the feeding process, and the length of the truss is guaranteed
Friendly UI makes the operation easier and PLC is used as CPU having high degree of automationProduct Parameters

No.	Item	Specification
1	Truss Height	70-350mm
2	Truss Length	2000-12000mm
3	Upper Chord Wire Diameter	8-14mm
4	Lower Chord Wire Diamter	6-14mm
5	Diagonal Wire Diameter	4-8mm
6	Max. Welding Speed	12m/min
7	Diagonal Wire Spacing	190-210mm
8	Pressure Method	Hydraulic type
9	Rated Power	3*250KVA
10	Wire Feeding	Coils
11	Oil Pressure	7-11MPA
12	Material	Low carbon round rebars or ribbed rebars
13	Load Duration Rate	20%

Detailed PhotosApplication
