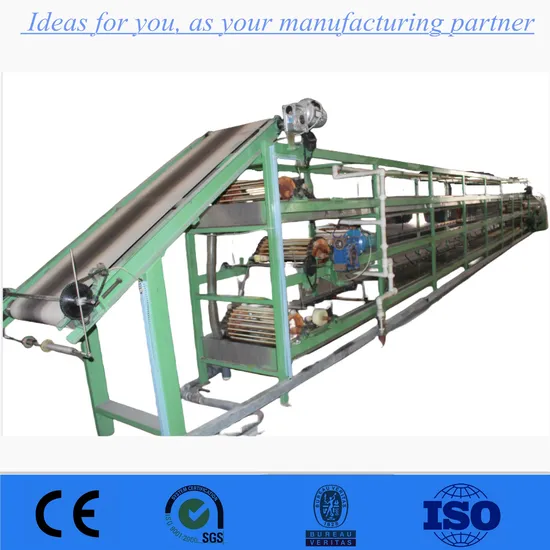

Tire Tread Cooling Machine-Tyre Tread Extruder / Cooling Production Line

Product Description

Tire Tread Cooling Machine-Tyre Tread Extruder / Cooling Production Line
Product Description Used for cooling, cutting and collecting tire thread or sidewall of bias tire and radial tire after extrusion.
Structure features:
Consisting of take-off, contraction, continuous weighing, marking, calendaring and sticking base system, cooling, speed set point setting, cut-off, accelerated separation, water blow-off, inspection, spreading and spraying rubber cement. Take-up device etc. And designed according to the domestic and foreign advanced technologies, with speed regulation by A. C. frequency conversion, PLC control, entire line synchronization, no stretching for products.
Product Parameters

Line speed	5-25 m/min
Width of production roll	650mm
Extraction height	900mm
Pick-up temperature	<=40°
cutter	Max. Thickness of the thread cutting:20mm
Max. Cutting width	450mm
Range of cutting angle adjustment	35°±5°
Length tolerance of the cutting component less than	±3
Cutting frequency	10-15cuts/min
Pressure of comp0ressed air	0.6-0.8Mpa
Total motor power	23.3kw
Cooling water consumption	50-60m³/h
Overall size	28000x2000x2800
Weight	20000kg

Packaging & Shipping
Company Profile Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
FAQ
Q1:Why choose Us? 1.More than 20 years history of EVERTECH MACHINE factory. 6-8 years foreign sales experience staff, more efficiency and professional. Engineers oversea service more than 20 countries . 2.ISO:9001,CE,BV certification approval 3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free. 4.Short delivery date, No delay. Accept urgent order for prompt shipment. Q2:What about Inner tube splice machine delivery date? It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay. Accept urgent order for prompt shipment. Q3:What's the Inner tube splice machine warranty statement? EVERTECH MACHINE warrants all the products manufactured by EVERTECH MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, EVERTECH MACHINE warranty covers ONLY the product itself. EVERTECH MACHINE will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored Only when the product has been installed and used properly as deemed by EVERTECH MACHINE,EVERTECH MACHINE will not repair products damaged by improper use or faulty installation. Q4:What about EVERTECH oversea service ? EVERTECH will arrange oversea setting up and training works if customer need . Customer should pay for accommodation , tickets and salary . Meanwhile EVERTECH has branches in different areas like north America , Southeast Asia , Brazil etc , etc .
