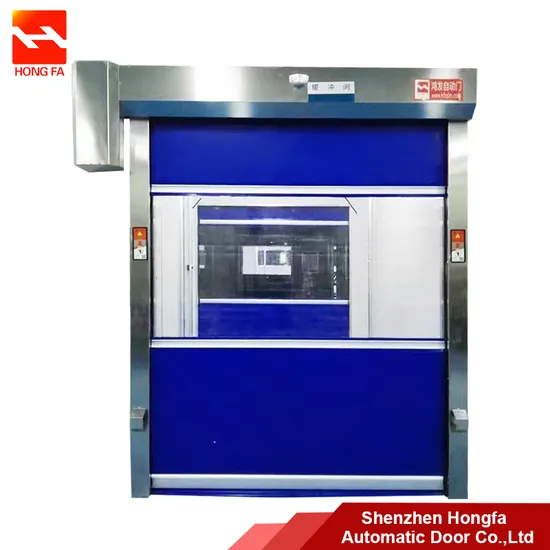

Industrial Electrical PVC High Speed Roller Shutter Fast Quick Door (HF-1088)

Product Description

Industrial Electrical PVC High Speed Roller Shutter Fast Quick Door (HF-1088)
Professional Automatic doors Manufacturer in China
Material Selection :
1. Frame: 2MM thicknesses cold-roll Stainless steel or aluminium alloy .
2. Motor : Germany brake motor .
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8-1.5MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Usage temperature: -30 ° C +70 ° C .
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
9.Transparent window: 1.2MM thickness transparent PVC window, size and location is Customized
10. Seal: Seal brush are Installed inside the guides, and the special bottom design .
11. Cotrolling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP : With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
15. Delivery time: About 7 business days with contract and deposit confirmed.
16. Pyament item: 50% before production, and the other 50% before shipment.
17. Warranty Details: We provide 12 months warranty for all doors and accessories
Product Parameters

Curtain Color	Blue, Orange,Yellow, Red, Grey, White,Green.
Viewing Window	Full transparent 1.5mm PVC window.
Power supply	AC 220V - 240V,Single- 3 Phrase, 50HZ
Temperature	-37 to 65 Celsius degree
Normal Working	-35 to 65 Celsius degree
Standard Motor Position	Left or Right
Installation Base	Concrete,Panel, Brick,Steel Structure.
Installation Space	≥600mm above the door ≥600mm for motor side ≥200mm for non-motor side ≥800mm in front of the door
Using Area	For Production Line,Electronics facotry ,Food factory ,cold storage room, cleanroom,

What service you can get from us ?
1) OEM service for you and your clients .
2) Arrange the shipment for you to everywhere .
3) CE / ISO-9001 / SGS Certification
4) Installation video or instruction for you.
5) Available suggestion about the correct doors.
6) Professional service supporting with different language , email or phone calling .
7) Operating guidance and instruction after installation .
8) Professional / Tirelessly after-sales service .
9) 12 Months warranty for all doors and accessories.
F A Q :1. What's the payment details?Deposit before production , and balance before shipment . 2. What's the delivery time?For common order, about 7 days only . 3. What about the warranty for the doors ?We provide 12 months warranty for all doors and accessories. 4. Do you provide OEM Service?Yes. OEM & ODM Service is ok for us . 5. What's the MOQ?We accept 1 set as sample order . 6. How about the package?Plywood case or Cardboard , suitable for sea freight or air freight , as your request .
