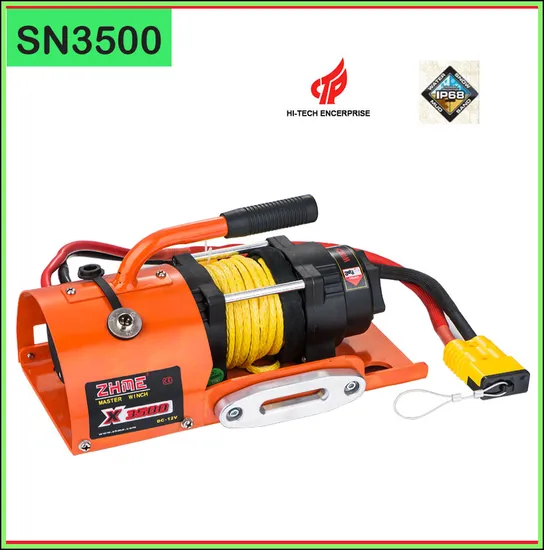

Zhme New ATV/UTV Rope Winches with Handle
| US$110.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
SN3500
Certification
CE
Rated Line Pull
3500lbs(Kgs) Sinle Line
Transport Package
Netural Packages
Specification
CE
Trademark
ZHME(can be OEM)
Origin
China
HS Code
84253190
Production Capacity
5000 PCS Per Month
Packaging & Delivery
Package Size
50.00cm * 26.00cm * 20.00cm
Package Gross Weight
14.000kg
Product Description
ZHME new Atv/Utv Rope Winches with handle1.Brake system: fully independent and automatic braking ensures safety and reliablity.
2.Water reasistance: proven design for reasistance to severe environmental conditions
3.Motor: Low current and high efficiency minimize battery drain.
Rated line pull: 3500lbs(1587kgs) single line
Motor: Permanent Magnetic motor (1.5HP)/1.0kw DC12V
Gear Train: 3 stage planetary
Gear ratio: 198: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø 5.5mm × 10m
Drum size: 50mmx76.5mm
Dimensions: 334mmX114mmX120mm
Mounting bolt
Pattern: 124mmX76mm
N. W: 17.6LBS(8.0KGS)
Packing: 440mmX250mmX220mm(per carton)
1000PCS per 20' container
Accessories:
Dimensions:
| Line speed and motor current(first layer) | ||||||
| Line pull | lbs | 0 | 1000 | 2000 | 3000 | 3500 |
| kgs | 0 | 454 | 907 | 1360 | 1589 | |
| Line speed | FPM | 16 | 10.5 | 9.2 | 7.2 | 5.9 |
| MPM | 4.9 | 3.2 | 2.8 | 2.2 | 1.8 | |
| Motor current | Amps | 15 | 70 | 105 | 135 | 150 |
| Line speed and cablecapacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | lbs | 3500 | 2870 | 2430 | 2100 |
| kgs | 1598 | 1300 | 1100 | 950 | |
| Cable capacity per layer | Ft. | 6.9 | 15.1 | 2409 | 36.4 |
| M | 2.1 | 4.6 | 7.6 | 10 | |
