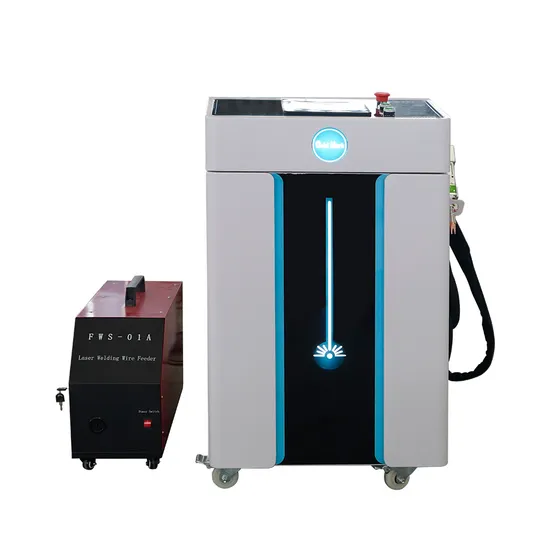

4 IN 1 Multifunction tiptop cnc 1.5kw new model 3 in 1 cnc handheld laser cleaning fiber laser welding machine

Product Description

Professional 3 IN 1 Multifunction wood laser cleaning machine / portable air cooling 1000w 1500 fiber laser welding machine

Detailed Photos

Laser welding head
Fast, good at precision welding of metal materials
Operation panel
Simple operation, different Various shapes and widths can be set.
Water cooling
Built-in chiller, constant temperature cold watermachine, condensate and fast cooling to ensure constant temperature
Laser fiber
Suitable for long-distance operation, wide range, flexible and convenient.
Product Parameters

Model	GM-WT-1000w	GM-WT-1500w	GM-WT-2000w	GM-WT-3000w
Laser Source Type	Fiber Source	Fiber Source	Fiber Source	Fiber Source
Function	3 in 1 Laser Welding&Cleaning&Cutting Machine
Laser Out Power	1000w	1500w	2000w	3000w
Laser Source	Raycus/Max/IPG/JPT/BWT/RECI	Raycus/MAX/IPG/JPT/RECI/BWT	Raycus/Max/JPT/IPG/BET/RECI	Raycus/Max/JPT/IPG/BET/RECI
Focal Spot Diameter	0.1-3mm	0.1-3mm	0.1-3mm	0.1-3mm
Laser Frequency	1-50HZ	1-50HZ	1-50HZ	1-50HZ
Repeatability	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Machine Operating Temperature	0~40ºC	0~40ºC	0~40ºC	0~40ºC
Electricity Demand	220V	220V	220V/380V	220V/380V
Cooling Method	Water Cooling	Water Cooling	Water Cooling	Water Cooling
Continuous Oprating Time	24 hours	24 hours	24 hours	24 hours
Weight	220kg	220kg	220kg	220kg
Dimensions	113*97*116CM	113*97*116CM	113*97*116CM	113*97*116

Sample
Rust removal:
100W laser rust removal cleaning process is one of the most effective, cost-saving and environment friendly rust removal methods. This machine can be used to clean all kinds of parts, such as metal, cast iron products and so on.Paint removal:
The high quality laser removes corrosion and rust with the help of a special reflection coating. This 100w laser cleaner is 100% safe to use and all materials will be completely unaffected by the laser.Oil Contamination Removal With the 100W laser cleaning machine, you also have a machine perfect for clearing oil, grease, or other products from metallic and non-metallic materials. Therefore, it is an important laser cleaning machine if you work in the manufacturing and repair industry, where an accumulation of moisture, dirt, and grease is common.Product protection:
This 100w rust cleaning laser machine is specially designed to clean old rusted iron and steel parts. It can remove rust on metal using a high-intensity laser, so that the surface of the metal becomes bright and spotless.
Features of Handheld Laser Welding Systems:
Portability: The compact and lightweight design of handheld laser welding machines makes them highly portable.
High precision: These machines are capable of soldering with high precision, making them suitable for welding small parts or intricate components.
Fiber optic cable: These machines use a fiber optic cable to deliver the laser beam to the workpiece. The fiber optic cable is flexible and allows for easy maneuvering, allowing for the laser beam to be directed precisely where it's needed.
Adjustable focus: The laser beam can be focused to a very small point, allowing for welding with high precision. The focus can also be adjusted to different depths, making it possible to weld materials of various thicknesses.
Easy to operate: Handheld laser welders are typically easy to operate, with a user-friendly interface that allows for quick and simple adjustments.
Multifunction: Laser welding cleaning cutting machine with 5-in-1 function, includes 5 wire-feeding copper nozzles, 1 copper nozzle for outer corner welding, 1 dual wire-feeding copper nozzle for weld bead cleaning and 1 copper nozzle for cutting. The hand held laser welding machine is equipped with 6 copper nozzles, aiming to provide greater flexibility to meet various welding angles, materials, and effects.
Company Profile
2022, more than 10sets 12000W high-power laser cutting machines and 5sets 20000w laser cutting machines were delivered Laser Max with a decade of cumulative laser equipment design and manufacturing expertise Gold Mark focus on laser cutting machine, laser welding machine, laser cleaning machine, laser marking machines, customized and other series of more than 50 kinds of industry specific laser solutions.Having long-term with United States,Russia,Mexico,Britain,Germany,Brazil,Korea,Turkey,India,Indonesia,Saudi Arabia and more than 50 countries' company in R&D cooperation Bulk purchases to obtain greater support from suppliers, lower purchase costs for the same product, and better after-sales policies Gold Mark is willing to share our advantages and resources with partners, and warmly welcome to cooperate with us
2013 Jinan was established 2015 developed rapidly , product sales exceeded 800 sets 2016 Laser Cutting Division was established 2018 over 2000 sets of machines been sold, beeing one of the well-known manufacturers of laser equipment in the world 2020 laser cutting factory which size over 15000 square meters was established in Jinan. Sales keeping growth rapidly, sales reach 120 million RMB.2021, independently developed and produced the first 12,000 watt high-power laser cutting machine
1.Free test samples -We can carry out free marking effect tests according to your product material
2.Video Live-You can connect with our sales consultants to watch the production process and the operation of the machine in online video.
3.Customised /OEM-Customised machines on request,Contact us!
After Sales Service
What kind of support you can get from Gold Mark?
1- 3 year warranty,Provide a full range of technical support for life.
2- From monday to sunday 9am to 22pm. Experienced technician to guarantee lifetime online support(by whatsapp /skyper /wechat /email). So there is no need to worry about technical support due to time difference.
3-Support local after-sales service. up to 2022, we have offered onsite to these countries and areas: Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia,etc..
We have a professional and experienced after-sales service team. As required, skill trainings and assessments would be organized for them every year for effectively solving every problemour customers would meet.

Customers from all over the world
Packaging & Shipping
1. Cleaning the fiber laser cutting machine.
2. Wrap all the laser cutting machine parts with bubble film and plastic film.
3. Fix the machine with iron frame.
4. Wooden box sealing the fumigated plywood portection is finished.
5. Forklift the packed machine to the container. 6. Choose the optimal routes and transportation mode according to the distance.
Other Products
Below are other hot-selling laser machines from our factory, looking forward to your inquiry

The Area Of Fiber Laser Cutting Machine The Area Of Jewelry Welding Machine
The Area Of Laser Engraving Machine The Area Of Laser Cleaning Machine
FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details: 1.What is your material? 2.The size of material? 3.The thickness of material?
Q:When I got this machine,but I don't know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q:If some problems happen to this machine, what should I do?
A:We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q:What is the payment terms?
A:The payment terms we accept include:Western Union,T/T,VISA,Onlina Bank Payment.
Q:How about the shipping ways?
A:Transport by sea is the normal way;If special requirement,need to be final confirmed on both sides.
Q:Why is the price of the machine different from what I actually want to buy it for?
A:The price of the machine is determined by the configuration of the machine, so products with different configurations will have different prices.
