Woodworking Machineery Four Side Moulder Cutting Machine

Product Description

Main Feature
1.Adopt stepless speed regulation with the feeding speed of 6-36 M / min
2.Each spindle driven by an independent motor, with strong cutting force.
3.Spindle adjustment is in the front, easy to operate
4.Electroplating countertops with good wear resistance
5.The lower initiative rollers improves the feeding effect
6.Configured Chint electrical components
7.Fully enclosed safety shield, effectively avoid sawdust flying and isolate noise
8.Pneumatic pressure type feed wheel, adjust the clamping force sectionally,
is good for smooth feeding of wood profile with different thickness
9.Configured auxiliary device for short profile to promote the smooth feed.

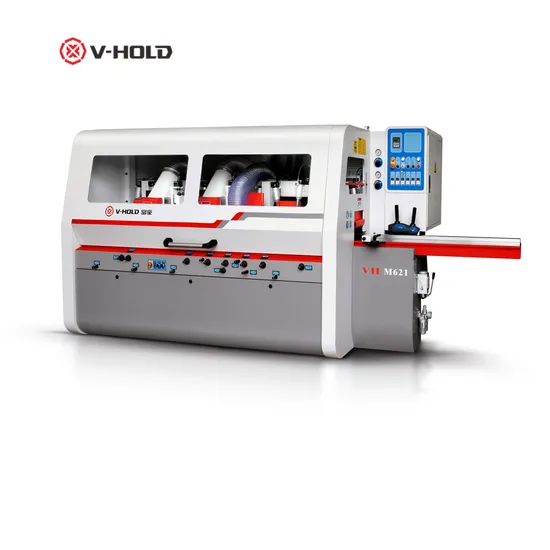

VH-M621
Working width	25-210mm
working thickness	8-140mm
working table length	1970mm
feeding speed	6-36m/min
Main shaft diameter	40mm
Main shaft revolution	6500r/min
Air pressure	0.6MPa
Motor Power
1st bottom shaft	5.5kw
Right vertical shaft	5.5kw
Left vertical shaft	5.5kw
1st top shaft	7.5kw
2nd top shaft	7.5kw
2nd bottom shaft	7.5kw
Feeding beam lifting	0.75kw
feeding motor	5.5kw
Cutter diameter
1st bottom shaft	125mm
Right vertical shaft	125-180mm
Left vertical shaft	125-180mm
1st top shaft	125-180mm
2nd top shaft	125-180mm
2nd bottom shaft	125-200mm
Feeding roller diameter	140mm
Dust outlet diameter	140mm
Size of machine	4300x1700x1800mm
Weight	3350kg

Machine detail
1.Casting body
Solid cast iron table is key point why V-HOLD moulder working for life long high precision withou any vibration
2.Hard crome plate and working table
Hard chromed worktable for excellent wearability

3.short device
Equipped with short-material auxiliary device, effectively improve the feeding of short material smooth .
4.Feeding frequency inverter
Digital display, easy to operate, energy saving,protect the machine from wearing because of mechanical transmission.

5.Shaft
Each cutter shaftis assembled and tested under air-conditioned environment and is supported by good quality bearings.The stable-worked shaft guarantees the surface smoothness of finished products.

Application
Working shop
Exhibition
Shipment
