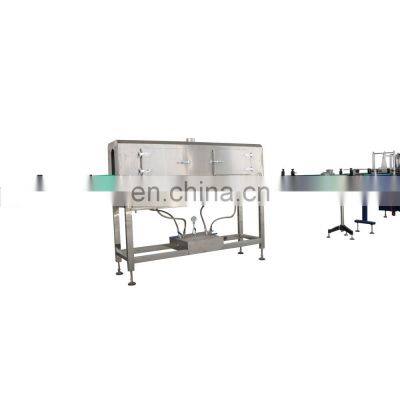

Semi Automatic Shrink Labeling Machine with Heat Shrink tunnel Steam Generator

Product Description

Product Description
Semi Automatic Shrink Labeling Machine with Heat Shrink Tunnel Steam GeneratorProduct Description Brief introduction1. Shrinkage film volume label rack, match with adjustable device, convenient to adjustaccording to differ volume label 5″~10″paper tube.2. Simply installation, then can convenient for square and round bottle.3. No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.4. Unique sleeve labeling method, adopt to pressing sleeve labeling method,not only convenient but also reasonable.5. Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity.6. Unique design knife plate, within specification scope, can avoid changing knife base,knife changing is quick and conveniently.7. Middle guide-pole clip system,mould changing is more quick, no need any instrument.8. Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.9. Adopt to Japanese import servo system and high-sensitivity photoelectric, label cutting precision is highly.10. Stainless steel electric equipment controlling case, controlling adopt to Thinget PLC11. Adopt to advanced man-computer Interface auto controlling technology, key electric component all adopt to international famous industrial brand STEAM HEAT SHRINK TUNNEL AND STEAM GENERATOR: Technical datas of Steam heat shrink tunnel :No.ItemTechnical data1Input Voltage Supply of Blower1P, 220 VAC2Input Voltage Supply of Steam Generator380V/ 50 Hz/3P3Working Pressure≤ 0.1 Mpa4Dimension of Shrink Tunnel L1800mm× W700mm × H1750mm5Weight180Kg Technical datas of steam generator: No.ItemTechnical data1Input Power Supply3 Phases 380V/220V2Input Power24KW3Steam Pressure0.4Mpa~0.7Mpa4Water Tank Volume48L5Feed water temperature 20℃6Rated steam temperature170℃7Vapor Generation Value34.4Kg/h8Pump power 0.55-0.75KW9External Dimension760mm*670mm*1360mm10Weight125Kg Application : With Automatic Shrink Labeling Machine Main technical data: Production capacity(BPH)2000-3000BPH 500ml Power(KW)24KW (Steam generator)Label specification30-125mmLabel length30-250mm Label thickness≥0.035mmLabel material PVC/PET/OPSDimension(mm)1800x1000x1600mmWeight(KG)185 Related productsCompany information Workshop detail Our team Our exhibition FAQ
