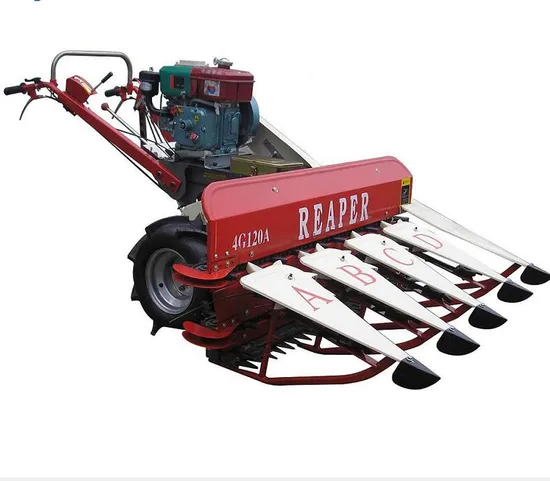

Walking Self-Propelled Diesel Paddy Wheat Rice Harvester Reaper 4gl-120A 150A
Basic Info.
Model NO.
4GL-120
Power Source
Diesel
Harvest method
Cutting
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture, Livestock, Aquaculture
Transport Package
Wood Box
Trademark
HLF
Origin
China
Production Capacity
2000PCS/Month
Product Description
4G-120/150 self-propelled harvester| Item | Index | |
| Model | 4GL 120A | 4GL 150A |
| Type of Cutting Table | Standing-Typed | Standing-Typed |
| Cutting Width (mm) | 1200 | 1500 |
| Min Cutting Height (mm) | ≥50 | ≥50 |
| Working rows | 4 | 5 |
| Placing Type | Sidewise & Banded Placed | Sidewise & Banded Placed |
| Productivity (M2) | 2000-2600square meters per hour | 2000-2600square meters per hour |
| Overall Dimensions (mm) (L*W*H) | 2200*1600*1100 | 2200*1900*1100 |
| Total Weight (Kg) | Around 210 | Around 230 |
| Matched Power (kw) diesel engine | 3.64 (4.5 horsepower) (choice 1) | 3.64 (4.5 horsepower) (choice 1) |
| Teeth Space (mm) | 127 | 127 |
| Running Speed of Crank (r/min) | 550 | 550 |
| Diameter of Star Wheel (mm) | 280 | 280 |
| Working Speed (km/h) | 2.6~3.6 | 2.6~3.6 |
| Chain Speed (m/s) | 2.24 | 2.24 |
| Number of Operator | 1 | 1 |
