ASME Standard 100 Tons 200m3 100mt Huge LPG Gas Storage Tank for Port Station and Plant

Product Description

Product Description
DPR STANDARD BULLET TANK ASME TANK FUYA 25-50 TONS 50-100 m3 LPG Storage Tank
1.LPG tank is also called LPG storage tank,LPG tanker, LPG storage tanker propane tank and propane tanker which belongs to special equipment.
2. It is mainly used for liquefied petroleum gas storage and distribution stations, car filling stations, etc.
3. There are many production processes for FUYA LPG storage tanks. Several important processes are as follows:
A, The first is the selection of raw materials for large-scale iron and steel enterprises;
B, The second is the overall heat treatment required for the welding of tanks.
4. This process is to eliminate the stress of steel plates and make the entire tank become a whole, so that the weld seam will not be cracked. Once again, the sand blasting process used by our company uses one or two millimetersof steel grit to spray the surface of the tank to remove rust.
5. This way of rust removal can effectively remove rust and spray paint and can also be used for longer.Finally, our company chooses products of large-scale paint companies, sprays the anti-rust primer twice, then sprays the topcoat twice.
6. The paint can ensure that thestorage tank will not lose paint for a long time, and the maintenance is better.This is how we keep good quality and competitive prices for global valued customers.
Product Advantage 1.Automatic circular seam welder guarantee the stable characteristics of solder joints
2.Rigorous x-ray X-ray radiographic inspection report
3.Resistance wire heating heat treatment process to eliminate all kinds of stress
4.ISO, 3C & ASME certificate
5.High quality domestic or imported safety accessories for user to choose

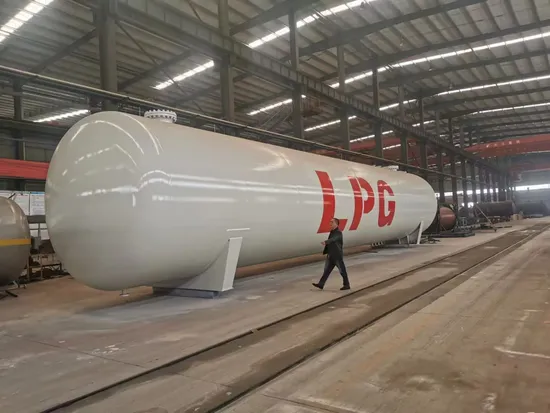

The specification of FUYA 100m3 LPG storage tank

Main Technical Specification
Description	100CBM LPG Storage Tank
Tanker Information
Total Capacity	100CBM/50MT
Dimension	13866*3132*3722 mm
Tank Weight (Kg)	20410 kg
Full Water (Kg)	50000 kg
Material of Tank and Main Pressure Parts	Q345R Carbon steel
Designation standard	GB China standard or equal
Tank Shell Design Thickness (mm)	18
End Plate Design Thickness (mm)	18
Tank Diameter (mm)	3100
Corrosion Allowance(mm)	1
Filling Medium	LPG (Liquefied Petroleum Gas)
Medium Density	420-590 Kg/CBM
Fluid Property	Flammable
Design Pressure (MPA)	1.77
Operation Pressure (MPA)	1.61
MAWP	1.77 MPA At 50(ºC)
MDMT At MAWP	-19(ºC) At 1.77 MPA
Design Temperature (ºC)	-19~50
Operation Temperature (ºC)	-19~50
Tanker Detection
P.W.H.T	Overall Heat Treatment In A Furnace, 600ºC to 640 ºC
NDE	100% RT Radiography
Joint Efficiency (Head&Shell)	1.0
Hydrostatic Test (MPA)	2.31 (Horizontal)
Gas Leak Test (MPA)	1.77

Company Image
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system,high efficient delivery.
5. Many trucks are exported in different countires. We have professional sales team.
products Detail
Our WorkShop
Shipping
Our Customers
Our main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
13. Pressure Vessel
Our Service 1. One year quality warranty for key parts such as axles, engine, transmission;
2. All spare parts would be OEM and supplied at cost prices;
3. Overseas service center to ensure efficiency after-sales service;
4. Regular after-sales visit to collect information about the vehicle's working status and feedback from customers.
Our advantage:
a.Competitive Price and Excellent Quality
b.More than 10 years' experience as a manufacturer
c.CCC, ISO, BV certification
d.Perfect after-sale service
e.Customized products available with us,
f.Export covering More than 50 countries and regions
g.Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
